Ignition Lock Key Transmitter Antenna Replacement - Floor Console

WARNING: This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

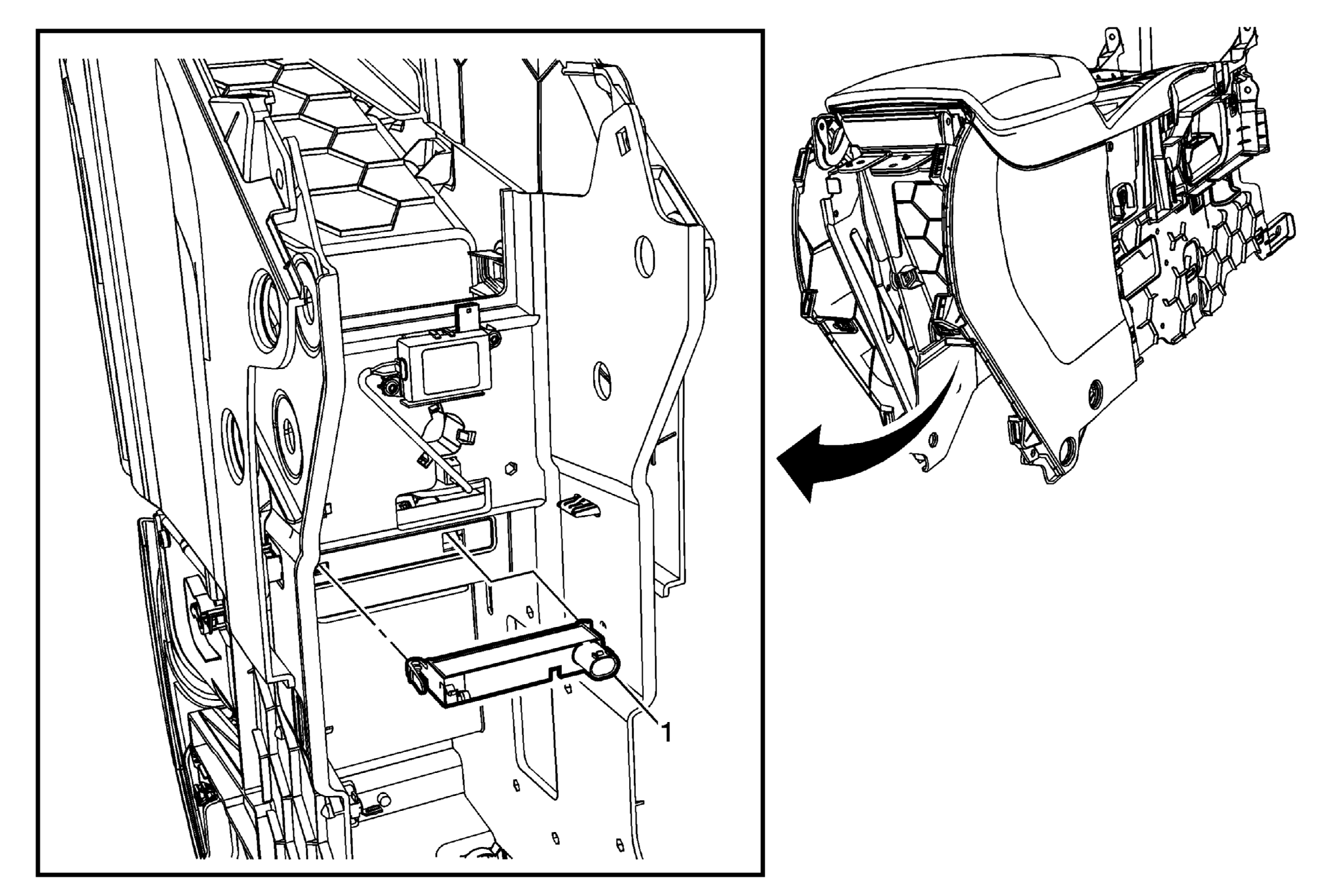

Fig 1: Identifying Ignition Lock Key Transmitter Antenna - Floor Console

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front floor console. Refer to Front Floor Console Replacement
1	Ignition Lock Key Transmitter Antenna Assembly Procedure Disconnect the electrical connector. Unsnap antenna from the floor console.

Callout

Component Name

Preliminary Procedure
Remove the front floor console. Refer to Front Floor Console Replacement

Ignition Lock Key Transmitter Antenna Assembly

Procedure

Disconnect the electrical connector.
Unsnap antenna from the floor console.
