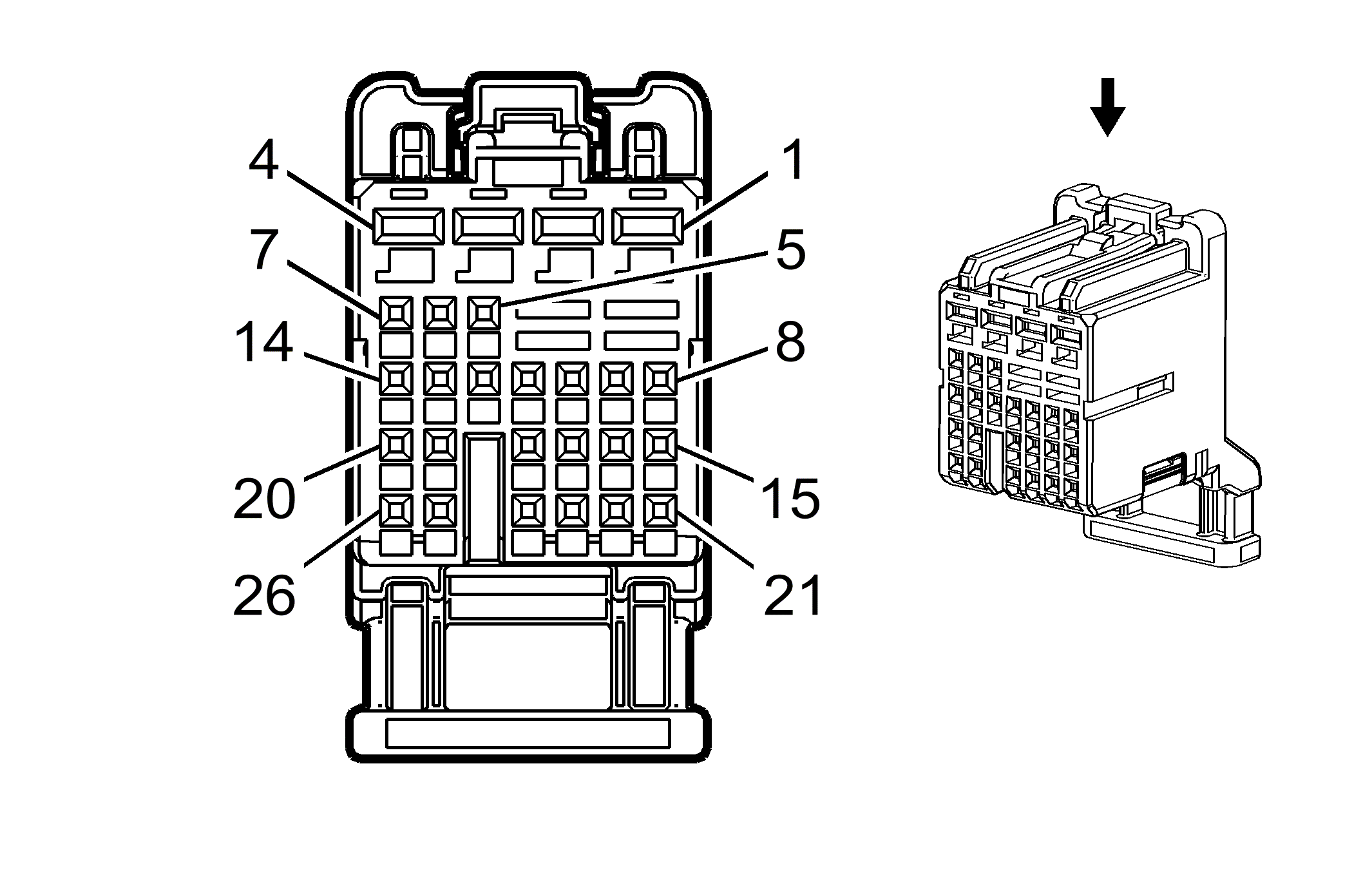

K9 Body Control Module X1

Connector Part Information

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	13575870	J-35616-64B (LT BU)	J-38125-12A	SNAC3-A021T-M0.64	Delphi 20	J	J
II	13575871	J-35616-35 (VT)	J-38125-12A	SNAC-A061T-M2.8	Delphi 20	E	A
III	13579954	J-35616-64B (LT BU)	J-38125-12A	Not Available	Not Available	Not Available	Not Available

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	0.75	BK	1650	Ground	II	-
2	0.75	RD/BK	2540	Battery Positive Voltage	II	-
3	0.75	RD/BK	2140	Battery Positive Voltage	II	-
4	0.75	RD/BN	2240	Battery Positive Voltage	II	-
5	0.35	WH	6816	Indicator Dimming Control	I	-
6	0.35	BN/WH	4046	Glove Box Door Release Relay Control	I	-
7	0.35	BK/YE	5005	Instrument Panel Lamp Dimmer Switch Low Reference	I	-
8	0.13	BN	5720	Ignition Mode Switch Accessory LED Signal	III	-
9 - 10	-	-	-	Not Occupied	-	-
11	0.35	L-GN/BN	306	Headlamp Switch Headlamps Off Signal Control	I	-
12	0.35	L-BU/GY	187	Rear Fog Lamp Switch Signal	I	-
13	0.35	L-BU/RD	1688	5 Volt Reference	I	-
14	0.35	GY/L-GN	328	Interior Lamp Defeat Switch Signal	I	-
15	0.35	L-BU/VT	5904	Steering Column Lock Status Signal	I	-
16	0.35	WH/VT	103	Headlamp Switch On Signal	I	-
17 - 18	-	-	-	Not Occupied	-	-
19	0.5	BK/BN	5360	Brake Apply Sensor Low Reference	I	-
20	0.35	L-BU/BK	5719	Ignition Mode Switch Start LED Signal	I	-
21	0.35	GY	728	Security Indicator Control	I	-
22	0.35	L-GN/GY	13	Headlamp Switch Park Lamp Signal	I	-
23	-	-	-	Not Occupied	-	-
24	0.35	WH	2501	High Speed GMLAN Serial Data (-) (1)	I	-
25	0.35	L-BU	2500	High Speed GMLAN Serial Data (+) (1)	I	-
26	0.35	L-BU/WH	3275	Remote Function Actuator Receive Signal	I	-
