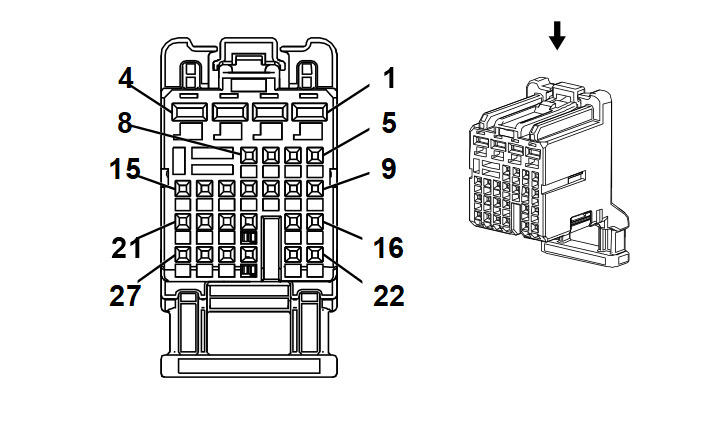

K9 Body Control Module X2

Connector Part Information

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	13575870	J-35616-64B (LT BU)	J-38125-12A	SNAC3-A021T-M0.64	Delphi 20	J	J
II	13575871	J-35616-35 (VT)	J-38125-12A	SNAC-A061T-M2.8	Delphi 20	C	A
III	13575871	J-35616-35 (VT)	J-38125-12A	SNAC-A061T-M2.8	Delphi 20	E	A
IV	13579954	J-35616-64B (LT BU)	J-38125-12A	Not Available	Not Available	Not Available	Not Available

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	0.75	RD/WH	2740	Battery Positive Voltage	III	-
2	0.75	BK	1650	Ground	III	-
3	0.75	RD	2940	Battery Positive Voltage	III	-
4	1.5	RD/VT	4040	Battery Positive Voltage	II	-
5 - 6	-	-	-	Not Occupied	-	-
7	0.5	L-BU/YE	5361	Brake Apply Sensor Signal	I	-
8	0.35	YE	6817	LED Backlight Dimming Control	I	-
9	0.35	YE/GY	44	Instrument Panel Lamp Dimmer Switch Signal	I	-
10	0.13	WH	278	Ambient Light Sensor Signal	IV	-
11 - 12	-	-	-	Not Occupied	-	-
13	0.5	WH	5359	Brake Apply Sensor Control	I	-
14	0.13	L-BU	1788	Traction Control Switch Signal (1)	IV	-
15	0.35	BN/L-GN	1634	Right Rear Heated Seat Switch Signal	I	-
16	0.35	GY	3273	Remote Function Actuator Low Reference	I	-
17	0.13	L-BU	5723	Ignition Mode Switch Mode Voltage	IV	-
18	0.13	L-GN	4047	Glove Box Door Release Signal	IV	-
19	0.35	BN/WH	1637	Left Rear Heated Seat Switch Signal	I	-
20	-	-	-	Not Occupied	-	-
21	0.35	L-GN/GY	6135	Local Interconnect Network Serial Data Bus 4	I	-
22	0.35	L-GN	5060	Low Speed GMLAN Serial Data	I	-
23	0.5	WH	2501	High Speed GMLAN Serial Data (-) (1)	I	-
24	0.5	L-BU	2500	High Speed GMLAN Serial Data (+) (1)	I	-
25	0.35	GY/WH	3272	Remote Function Actuator Control	I	-
26	0.35	L-GN/WH	111	Hazard Switch Signal	I	-
27	0.35	YE/L-GN	3274	Remote Function Actuator Transmit Signal	I	-
