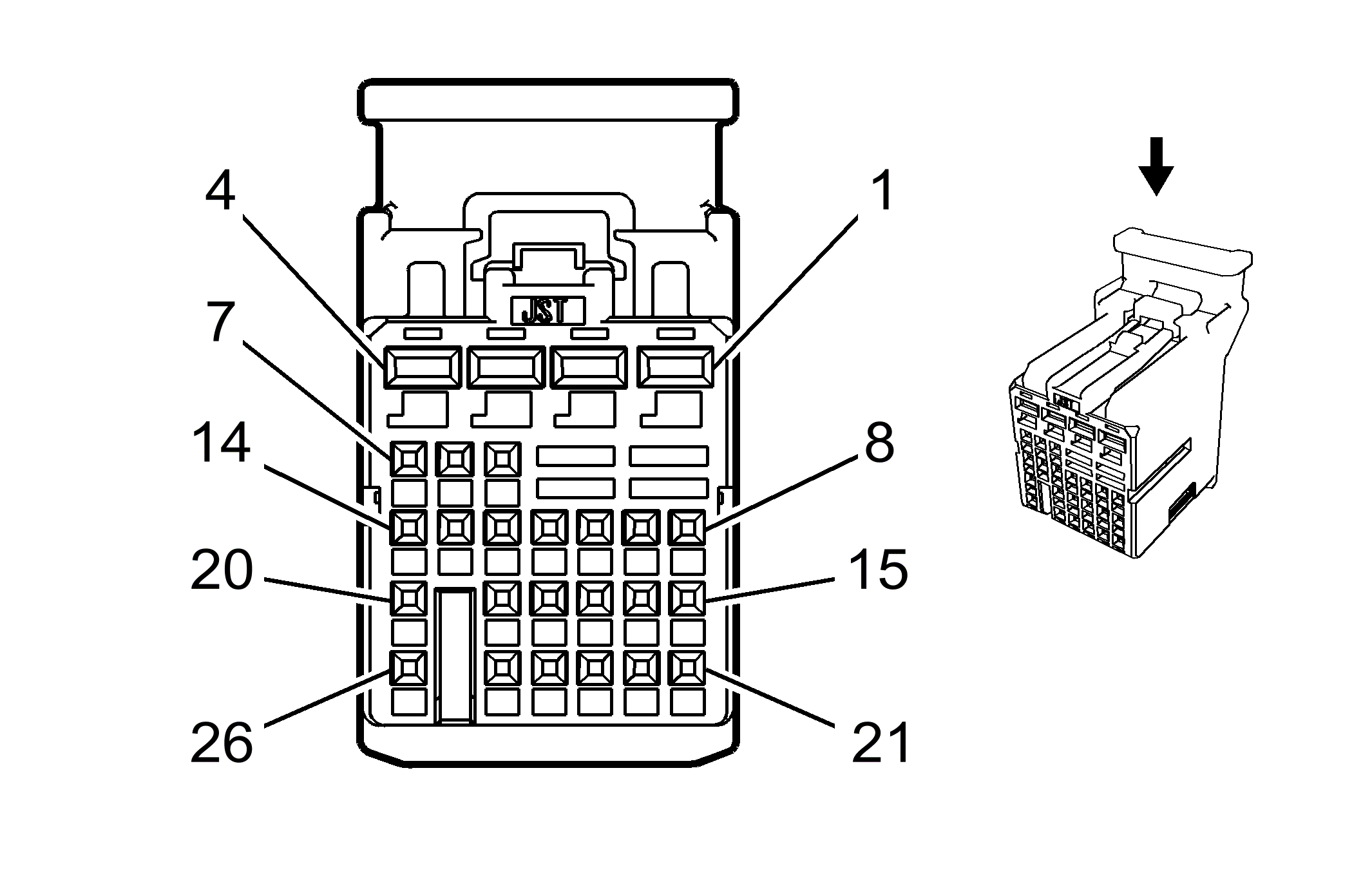

K9 Body Control Module X4

Connector Part Information

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	13575870	J-35616-64B (LT BU)	J-38125-12A	SNAC3-A021T-M0.64	Delphi 20	J	J
II	13575871	J-35616-35 (VT)	J-38125-12A	SNAC-A061T-M2.8	Delphi 20	E	A
III	13575871	J-35616-35 (VT)	J-38125-12A	SNAC-A061T-M2.8	Delphi 20	Not Available	Not Available
IV	13579954	J-35616-64B (LT BU)	J-38125-12A	Not Available	Not Available	Not Available	Not Available

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	0.75	L-BU/BN	7539	Right Front DRL Control	II	-
2	0.75	GY/L-BU	7538	Left Front DRL Control	II	-
3	0.35 0.5	L-GN/VT L-GN/VT	1315 1315	Right Front Turn Signal Lamp Control	III II	- -
4	0.75	L-BU/VT	1335	Right Rear Turn Signal Lamp Control	II	-
5	0.5	YE/BK	6994	Front Right Park Lamp Control Electronically Controlled	I	-
6	0.5	L-GN/L-BU	6992	Front Left Park Lamp Control Electronically Controlled	I	-
7	0.5	GY/YE	7542	Left Rear Stop Lamp Control	I	-
8	0.5	VT/WH	5065	Stop Lamp Relay Coil Control	I	-
9	0.35	GY/VT	3264	Logistic Mode Relay Close Control	I	-
10	-	-	-	Not Occupied	-	-
11	0.5	VT/GY	709	Left Park Lamp Control	I	-
12	0.13 0.35	GY GY/VT	755 755	RAP Relay Coil Control	IV I	- -
13	0.5	L-GN/YE	6846	Rear License Lamp Control	I	-
14	0.5	BN/GY	2268	Windshield Washer Relay Control	I	-
15	0.35	L-GN/VT	5199	Run/Crank Relay Coil Control	I	-
16	0.35	GY	91	Windshield Wiper Motor Relay Coil Control	I	-
17	0.35	BN/L-GN	196	Windshield Wiper Motor Park Switch Signal	I	-
18	0.35	WH/YE	5075	Current Sensor Signal	I	-
19	-	-	-	Not Occupied	-	-
20	0.35	RD/YE	2340	Battery Positive Voltage	I	-
21	0.35	L-BU/VT	5076	Current Sensor Control	I	-
22	0.35	VT/YE	5985	Accessory Wakeup Serial Data	I	-
23	0.35	WH/L-BU	5986	Serial Data Communication Enable	I	-
24	0.35	BN/L-GN	109	Hood Ajar Switch Signal	I	-
25	-	-	-	Not Occupied	-	-
26	0.5	BK	150	Ground	I	-
