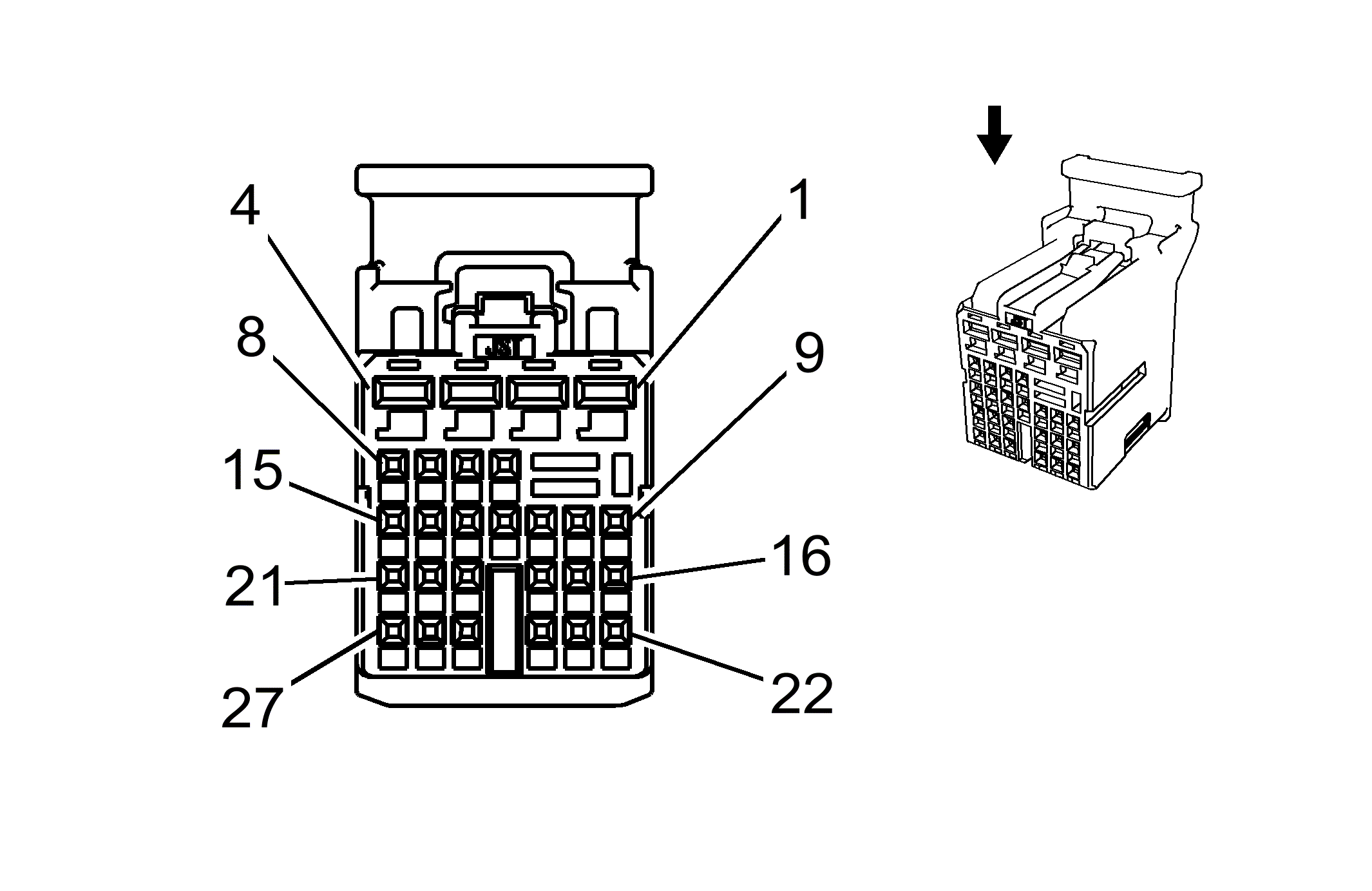

K9 Body Control Module X6

Connector Part Information

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	13575870	J-35616-64B (LT BU)	J-38125-12A	SNAC3-A021T-M0.64	Delphi 20	J	J
II	13575871	J-35616-35 (VT)	J-38125-12A	SNAC-A061T-M2.8	Delphi 20	C	A
III	13575871	J-35616-35 (VT)	J-38125-12A	SNAC-A061T-M2.8	Delphi 20	E	A

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	0.75	GY	5911	Door Lock Actuator Lock Control 2	III	-
2	1.5	GY/L-GN	3271	Door Lock Control (2)	II	-
3	1.5	BK	2150	Ground	II	-
4	1.5	BN/YE	294	Door Lock Actuator Unlock Control	II	-
5	0.5	VT/GY	1303	Lift Gate Ajar Switch Signal (1)	I	-
6	0.35	BN/VT	245	Passenger Door Lock Switch Unlock Control	I	-
7	0.35	WH/YE	7557	LED Ambient Lighting Control 1	I	-
8	-	-	-	Not Occupied	-	-
9	0.35	L-GN/L-BU	6133	Local Interconnect Network Serial Data Bus 2	I	-
10	0.35	L-GN/YE	6134	Local Interconnect Network Serial Data Bus 3	I	-
11 - 12	-	-	-	Not Occupied	-	-
13	0.35	YE/L-BU	4086	Pushbutton Start Challenge Active Signal	I	-
14	0.35	VT/L-BU	6189	Lift Glass/Rear Compartment Lid Interior Release Signal	I	-
15	0.5	YE/L-BU	5797	Rear Closure Handle Switch Open Signal	I	-
16	0.35	L-GN/BN	6132	Local Interconnect Network Serial Data Bus 1	I	-
17 - 20	-	-	-	Not Occupied	-	-
21	0.35	WH/VT	6567	Rear Turn Lamp Feedback Signal	I	-
22	0.35	YE/VT	244	Passenger Door Lock Switch Lock Control	I	-
23	-	-	-	Not Occupied	-	-
24	0.35 0.5	L-BU L-BU	2500 2500	High Speed GMLAN Serial Data (+) (1)	I	- -
25	0.35 0.5	WH WH	2501 2501	High Speed GMLAN Serial Data (-) (1)	I	- -
26 - 27	-	-	-	Not Occupied	-	-
