Rear Seat Audio Control W/O

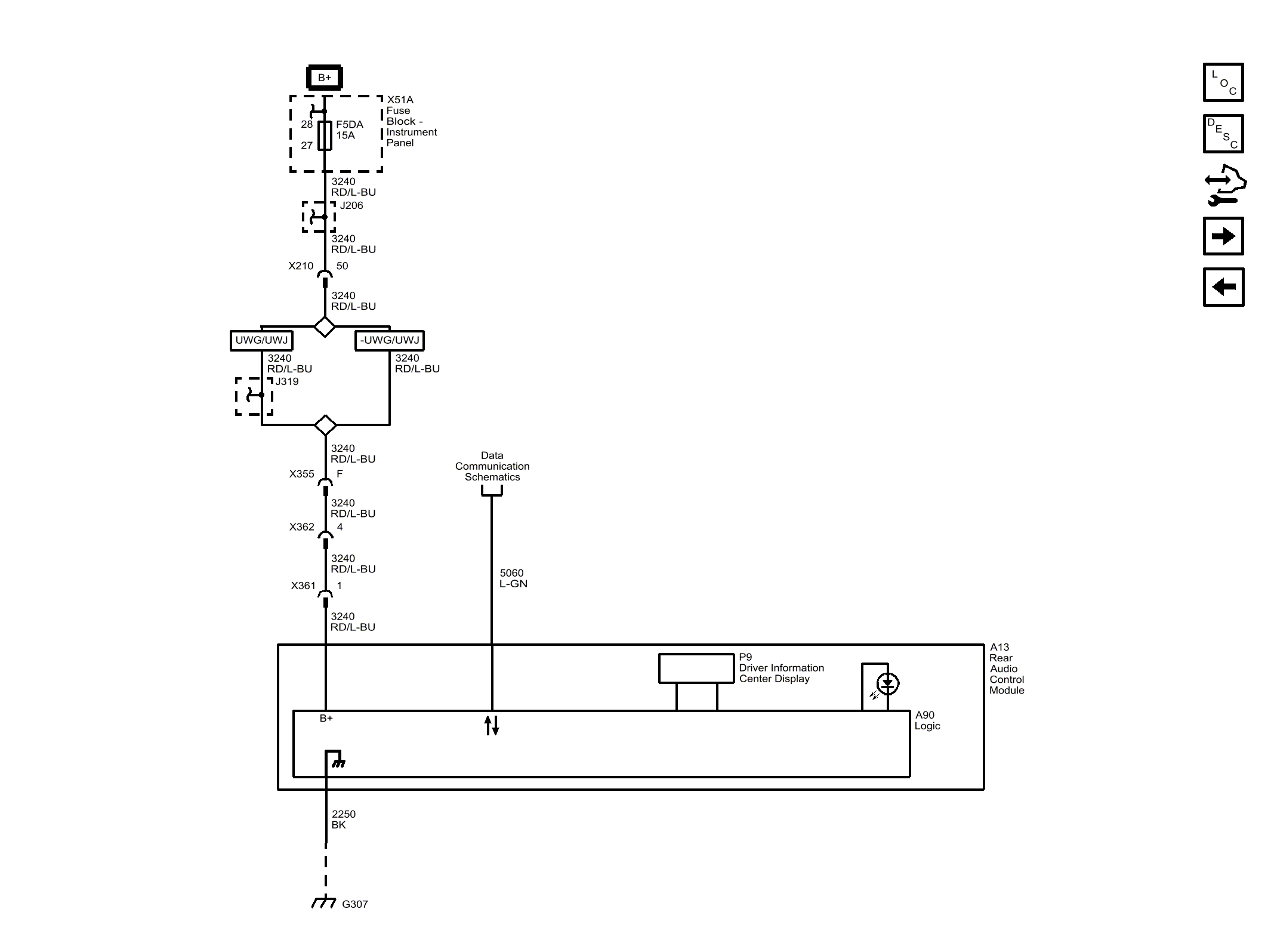

Fig 1: Rear Seat Audio Control W/O
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
