Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Data Communication System
>>
Schematic Wiring Diagrams
>>
Data Communication Wiring Schematics
>>
Data Link Connector Power, Ground and Low Speed GMLAN
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Data Link Connector Power, Ground and Low Speed GMLAN

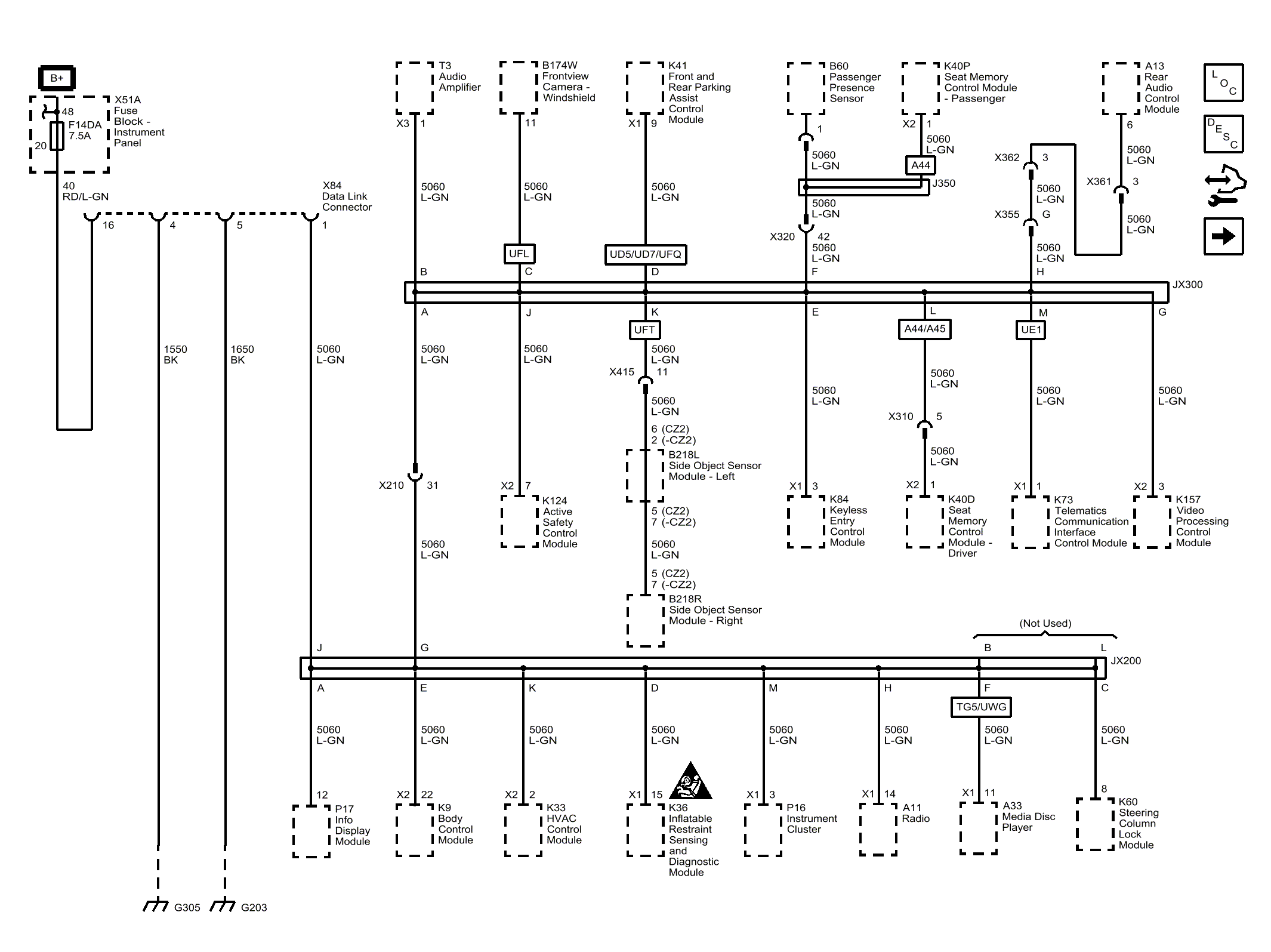

Fig 1: Data Link Connector Power, Ground and Low Speed GMLAN
Courtesy of GENERAL MOTORS COMPANY
