Parking Assist Alarm Disable Switch Replacement
WARNING: This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the instrument panel knee bolster. Refer to Instrument Panel Knee Bolster Replacement . |
|

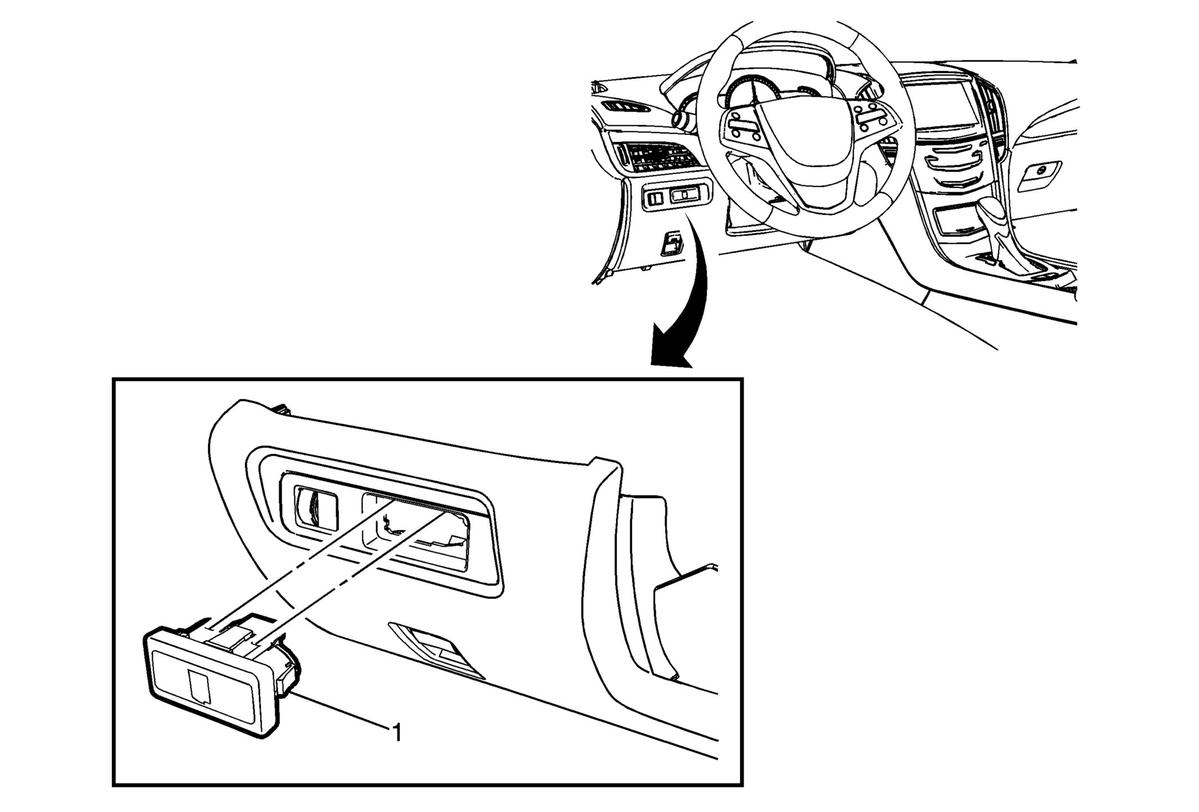

| 1 | Parking Assist Alarm Control Module Switch Procedure Use the appropriate tool to release the switch from the bolster. |
