Keyless Entry - Passive and Keyless Start
WARNING:
This page is about a different car, the 2016 Cadillac CT6. However, it is still accessible from the selected car via links, so may be relevant.

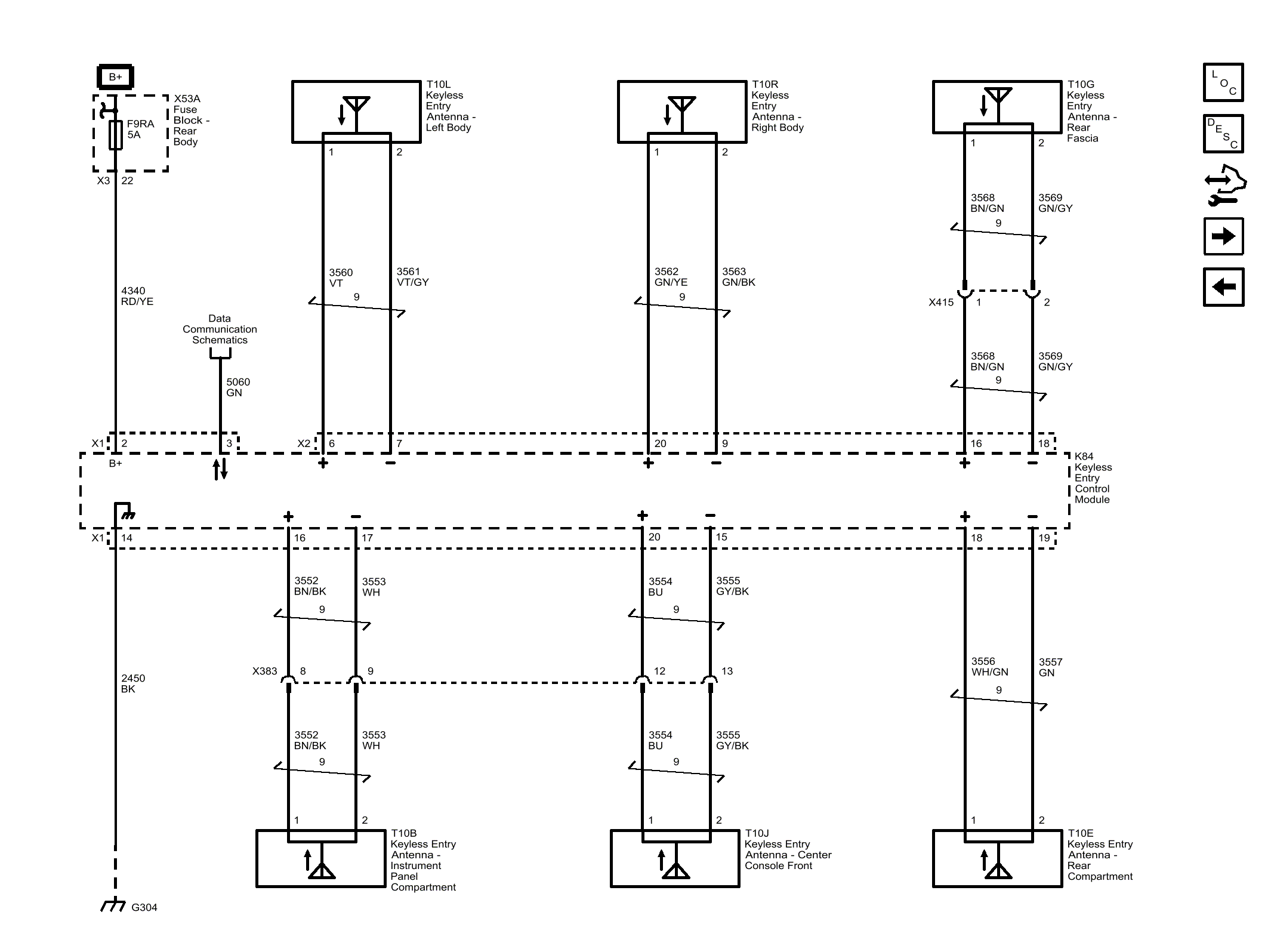

Fig 1: Keyless Entry - Passive and Keyless Start
Courtesy of GENERAL MOTORS COMPANY
