Lane Keep Assist and Forward Collision - Module Power, Ground, and Serial Data (UEU and UHX)

WARNING: This page is about a different car, the 2016 Cadillac CT6. However, it is still accessible from the selected car via links, so may be relevant.

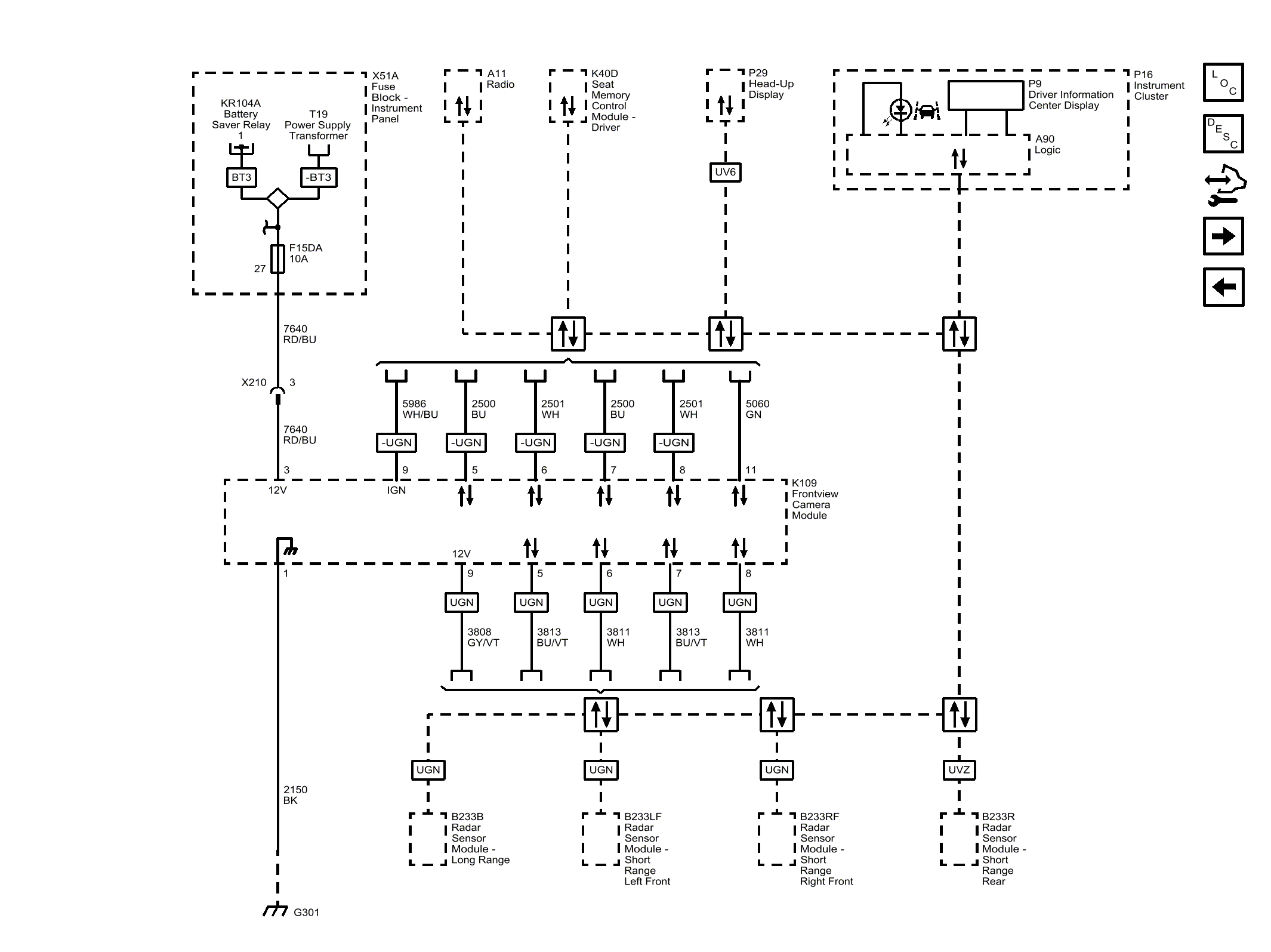

Fig 1: Lane Keep Assist and Forward Collision - Module Power, Ground, and Serial Data (UEU and UHX)
GM4257277Courtesy of GENERAL MOTORS COMPANY
