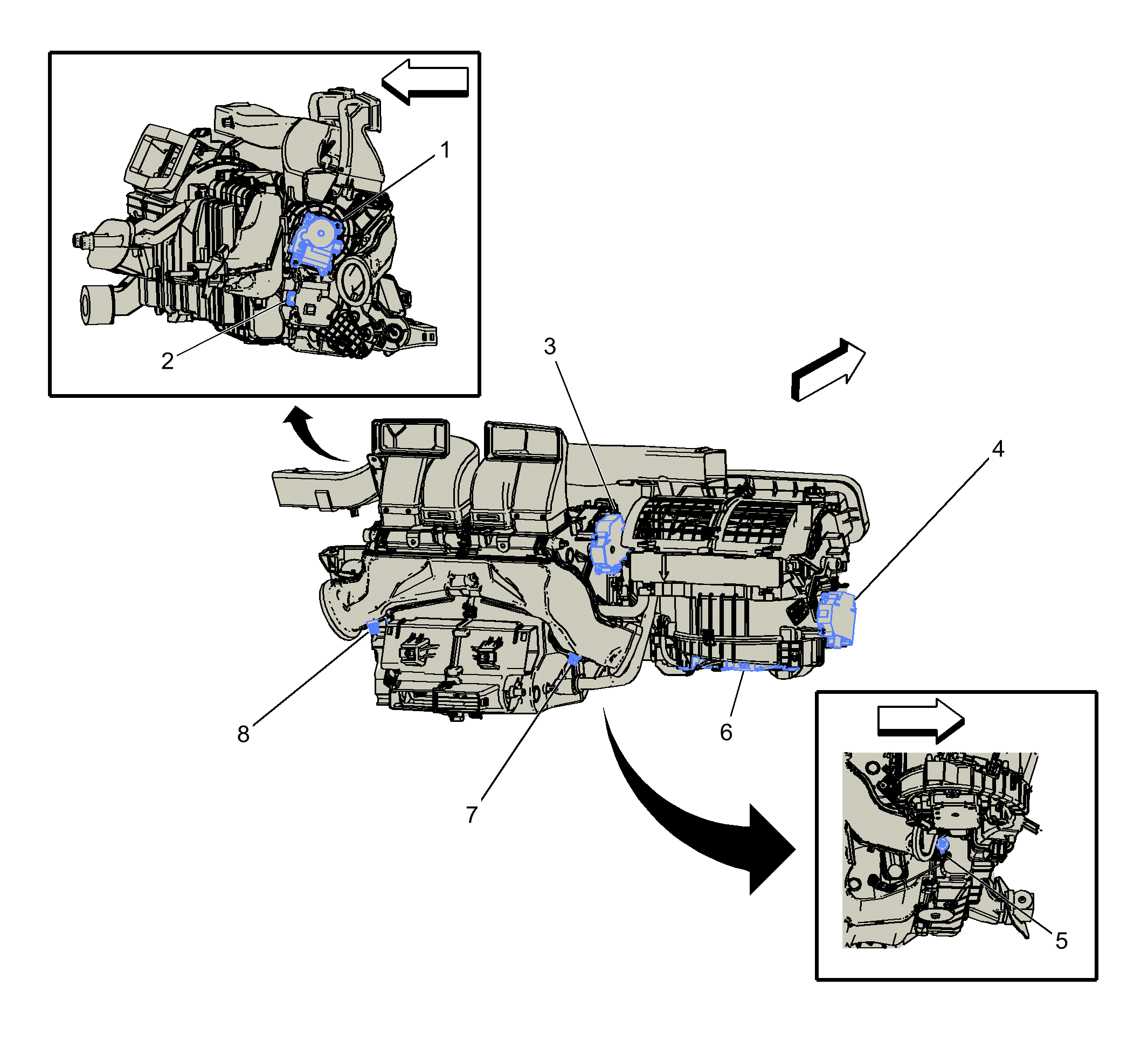

HVAC Module Components
HVAC Module Components
| Items |
|---|
| 1: M37 Mode Door Actuator M37 Mode Door Actuator |
| 2: M6L Air Temperature Door Actuator - Left M6L Air Temperature Door Actuator - Left |
| 3: M6R Air Temperature Door Actuator - Right M6R Air Temperature Door Actuator - Right |
| 4: M46 Air Recirculation Door Actuator M46 Air Recirculation Door Actuator (-KL9)M46 Air Recirculation Door Actuator (KL9) |
| 5: B39 A/C Evaporator Temperature Sensor B39 A/C Evaporator Temperature Sensor |
| 6: M8 Blower Motor M8 Blower Motor |
| 7: B7E Air Temperature Sensor - Duct Right Lower B7E Air Temperature Sensor - Duct Right Lower |
| 8: B7D Air Temperature Sensor - Duct Left Lower B7D Air Temperature Sensor - Duct Left Lower |
