Shift Lever Components (M5N/M5T/M5U)

Shift Lever Components (M5N/M5T/M5U)

Items
1: S3 Transmission Shift Lever (M5N/M5T/M5U)
2: S2 Transmission Manual Shift Switch (M5N/M5T/M5U) S2 Transmission Manual Shift Switch
3: B81B Park Position Switch (M5N/M5T/M5U)
4: M7 Transmission Shift Lock Control Solenoid Actuator (M5N/M5T/M5U)

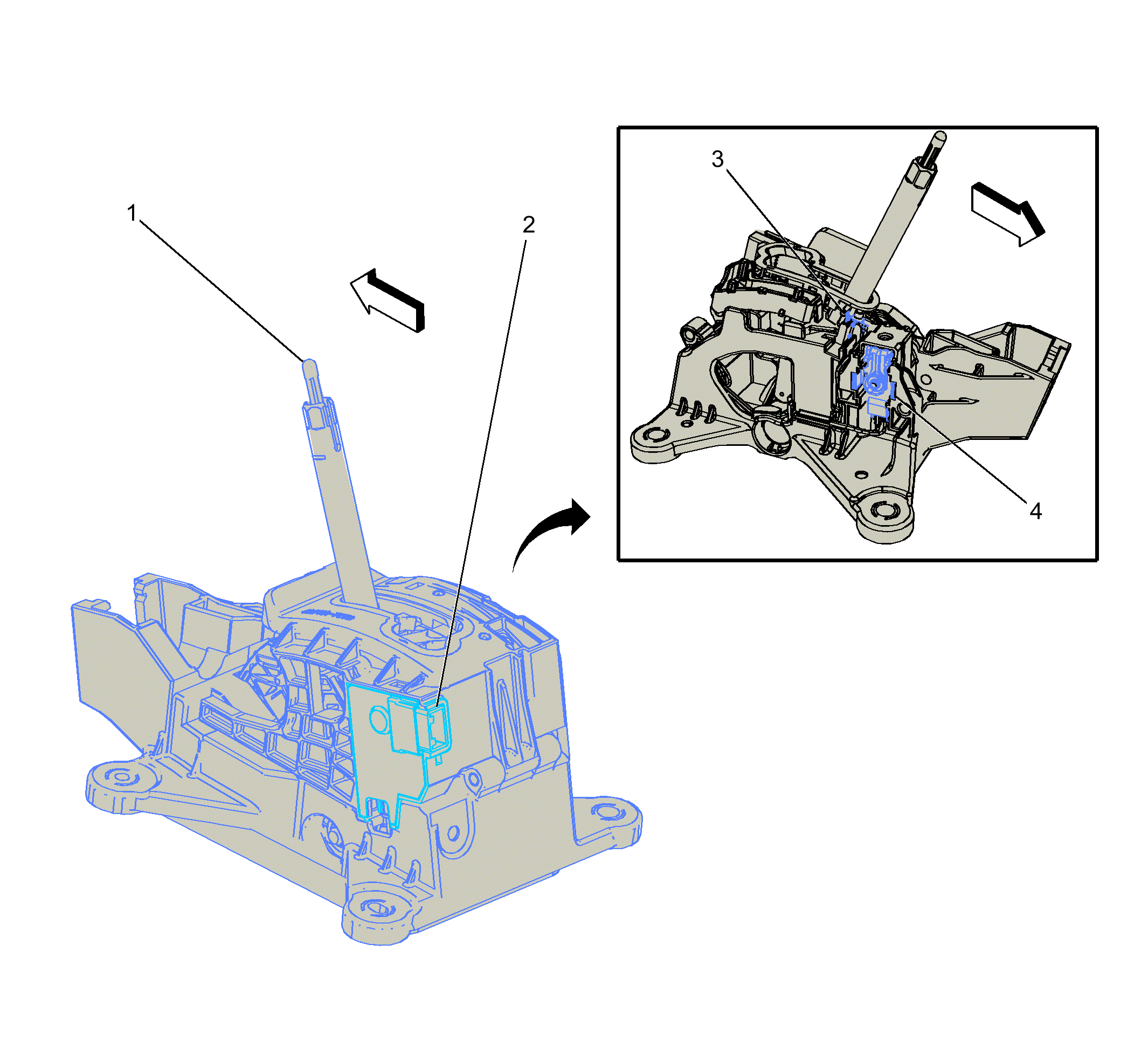

Fig 1: Shift Lever Components (M5N/M5T/M5U)
GM4055926Courtesy of GENERAL MOTORS COMPANY
