Refueling System Components

The refueling system consists of the following components:

• Refuel request switch
• Fuel door position sensor
• Fuel door latch
• Hybrid powertrain control module 2

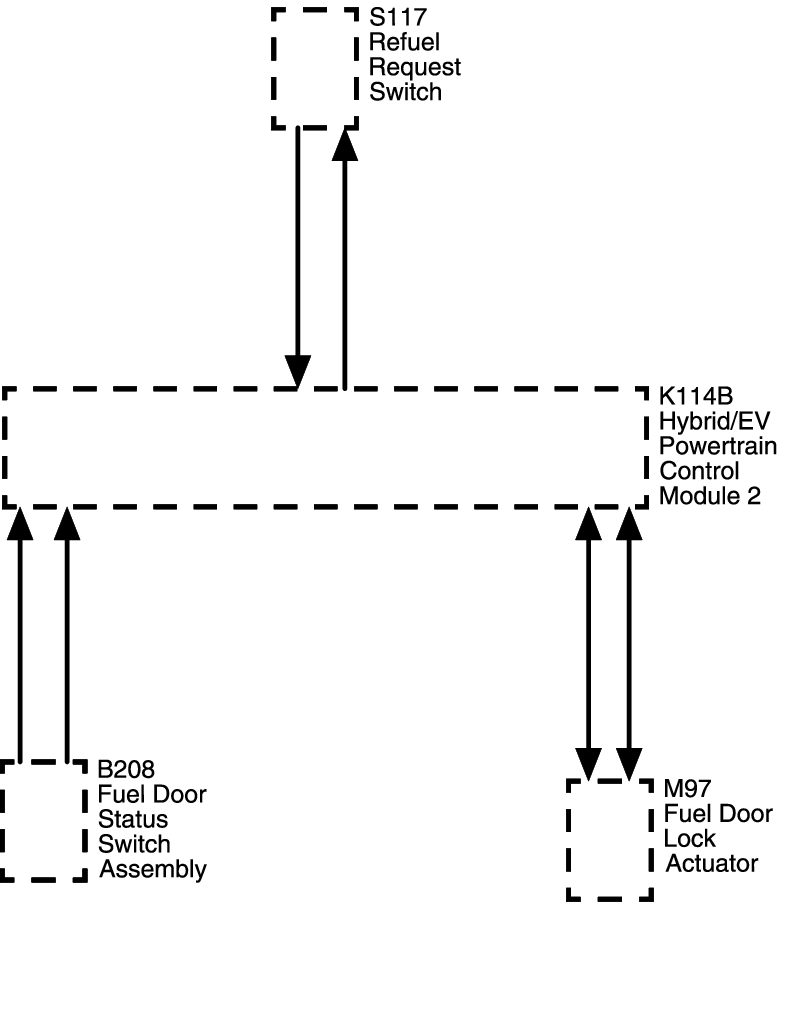

Fig 1: Refueling System Diagram

Courtesy of GENERAL MOTORS COMPANY
