Module Power, Ground, Serial Data and Liftgate Motor

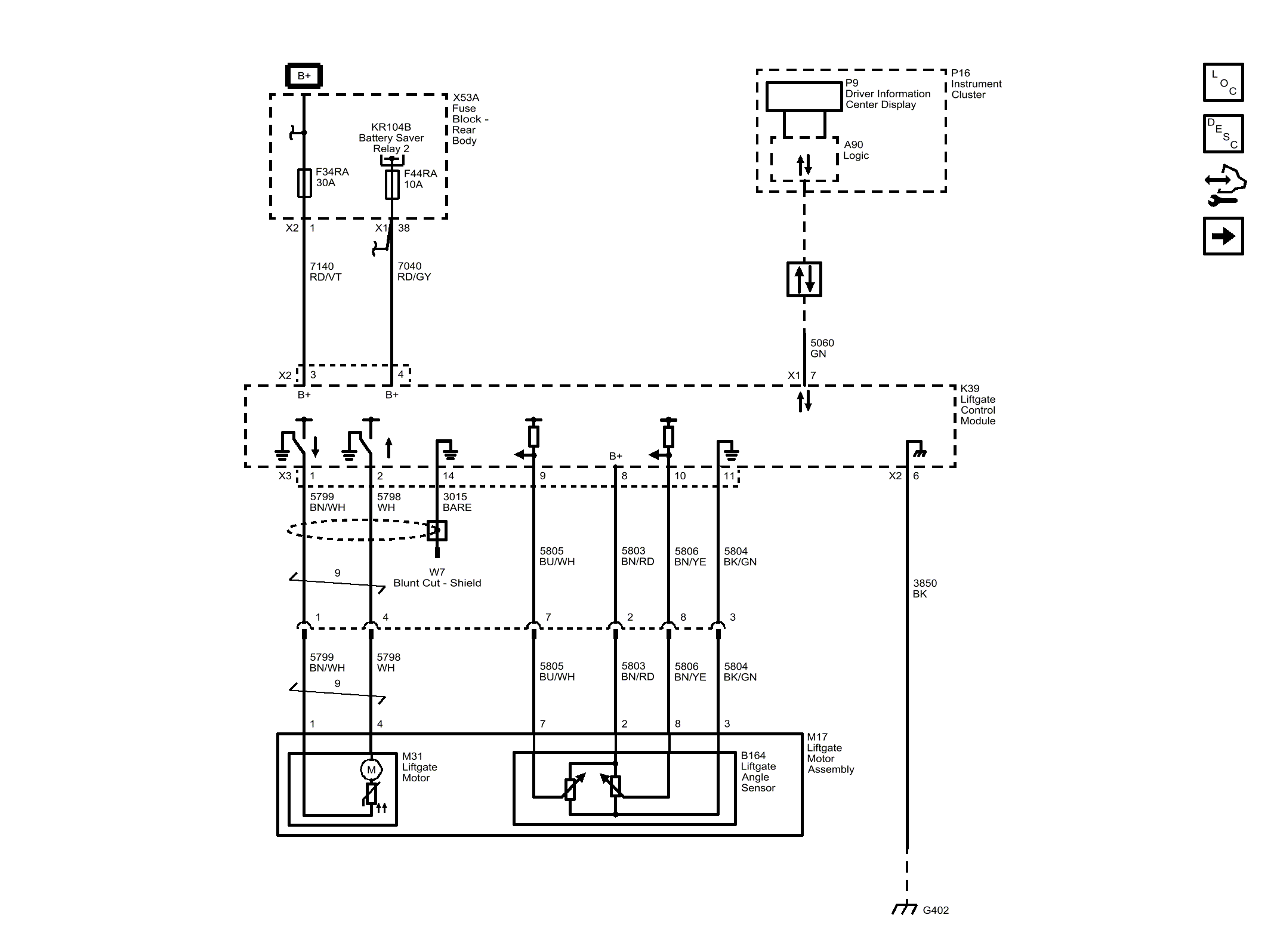

Fig 1: Module Power, Ground, Serial Data and Liftgate Motor
GM4489704Courtesy of GENERAL MOTORS COMPANY
