Serial Data Gateway Module and Data Link Connector Power and Ground

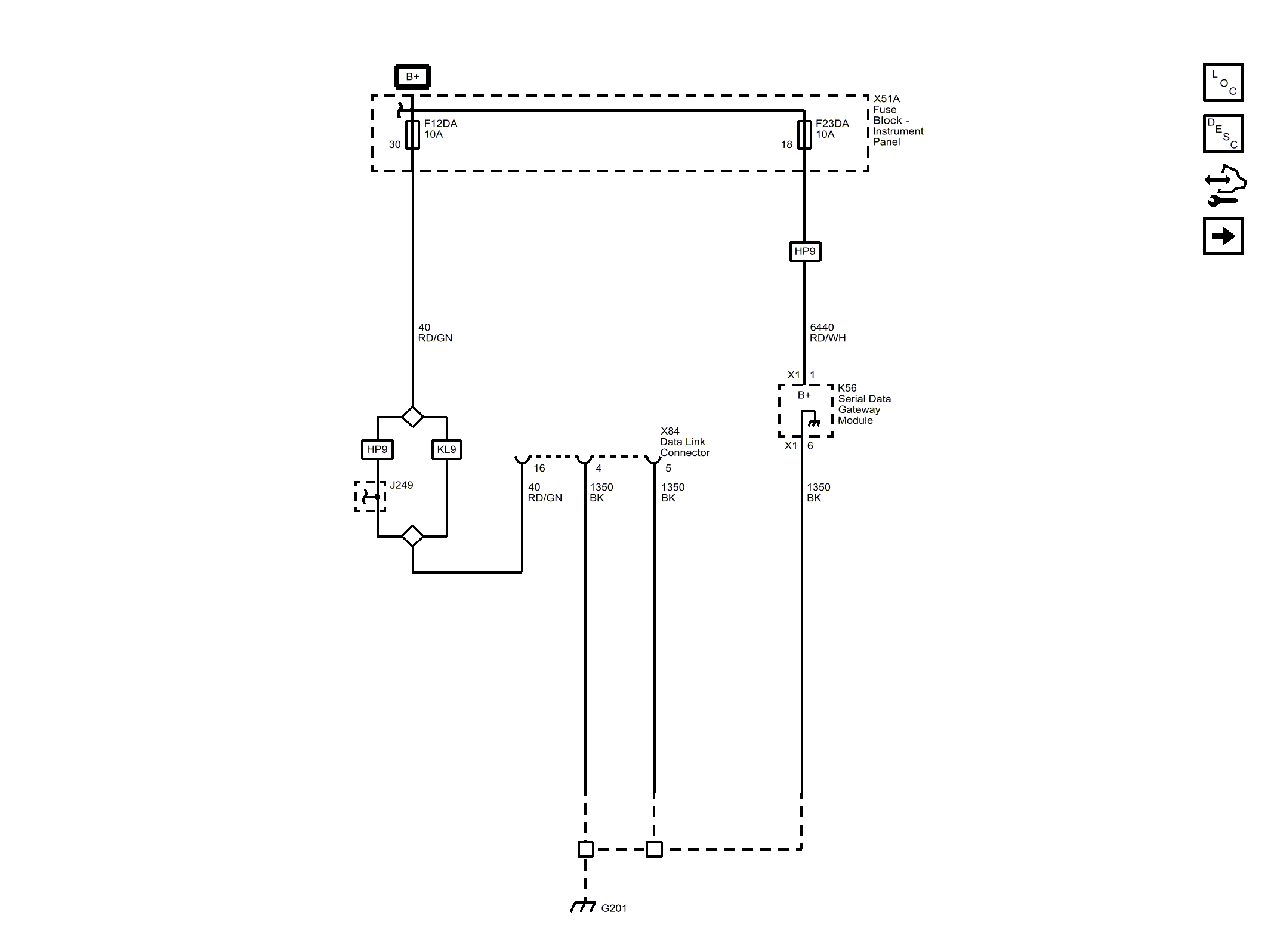

Fig 1: Serial Data Gateway Module and Data Link Connector Power and Ground
GM4517702Courtesy of GENERAL MOTORS COMPANY
