Park Assist - Front Sensors

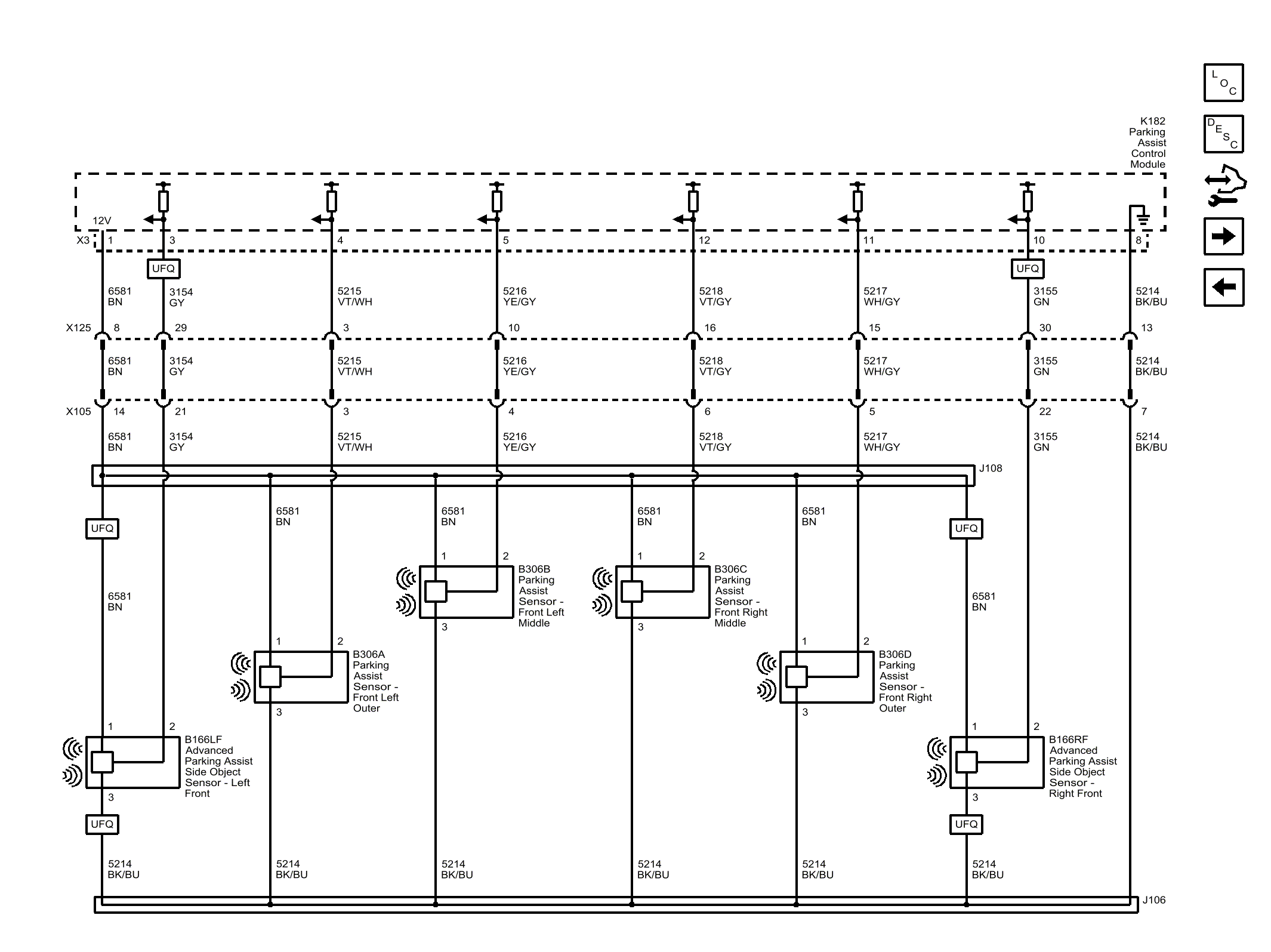

Fig 1: Park Assist - Front Sensors
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
