Audio Disc Player and USB Receptacle Replacement

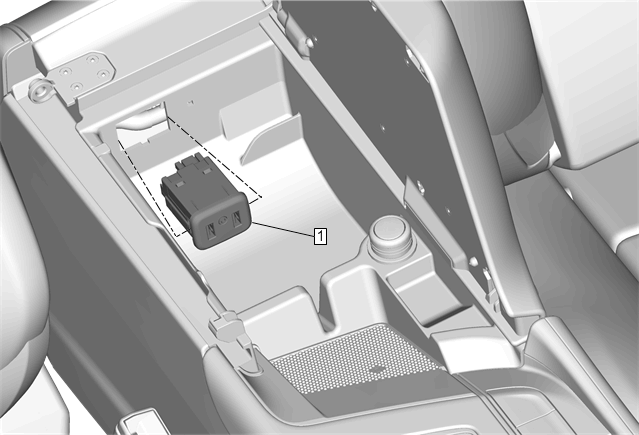

Fig 1: Audio Disc Player and USB Receptacle
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
Preliminary Procedure
Front Floor Console Armrest» Open
1
Audio Disc Player and USB Receptacle
Procedure
Use a flat bladed plastic tool to remove.
Disconnect the electrical connector.
