Auxiliary Inputs

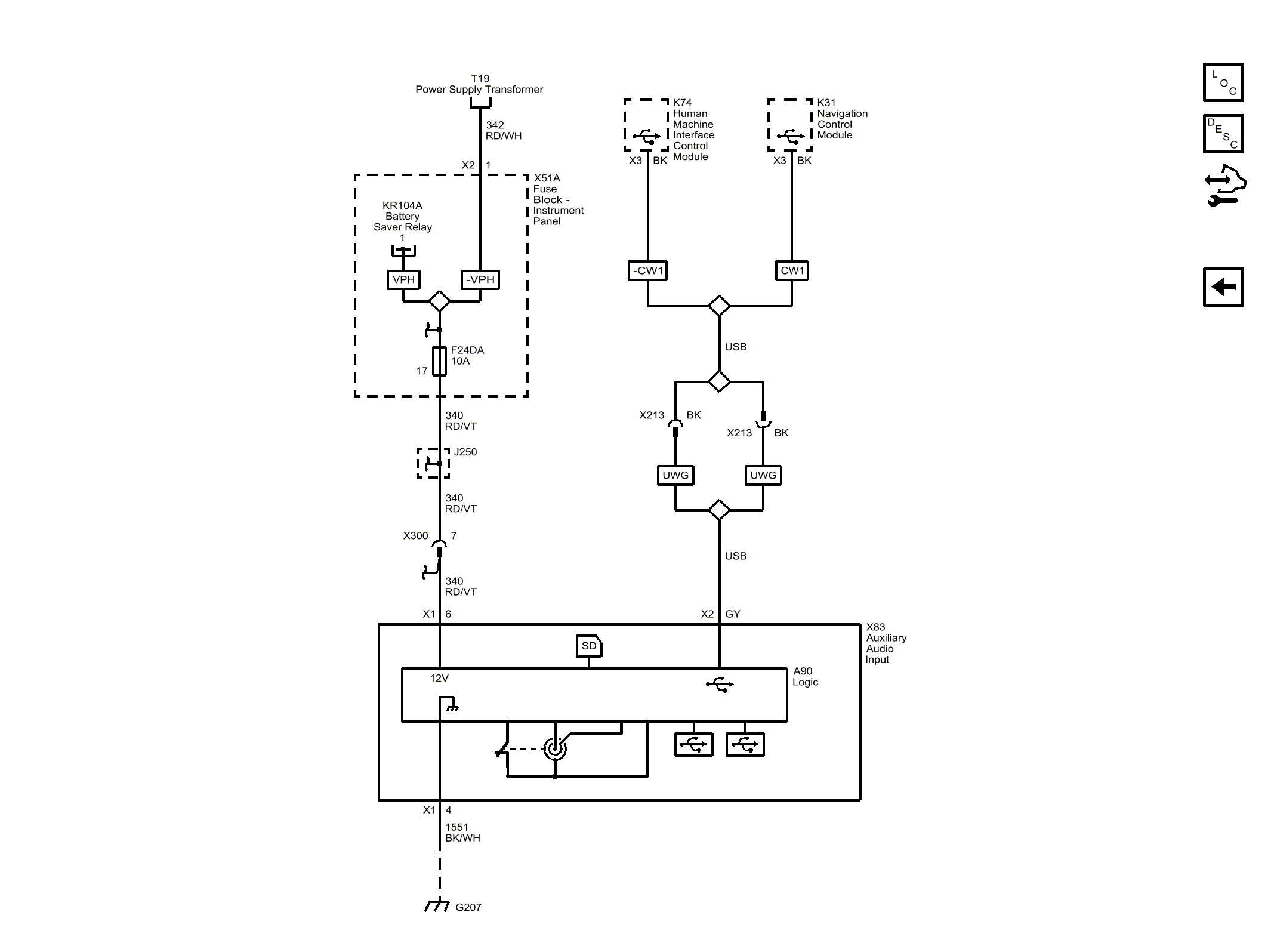

Fig 1: Auxiliary Inputs
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
