Headlamp Control Module Replacement

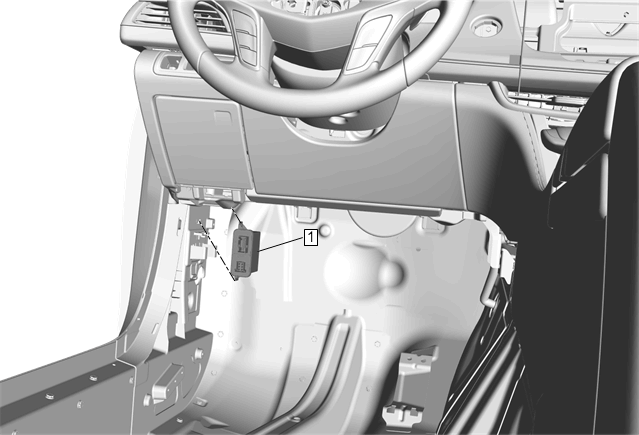

Fig 1: Headlamp Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Floor Panel Carpet Replacement - Left Side
1	Headlamp Control Module Procedure Disconnect the electrical connectors. Push the tabs to release the headlamp control module from the bracket. Control Module References for programming and set up, if required.

Callout

Component Name

Headlamp Control Module

Procedure
