Media Disc Player Power, Ground and Serial Data (WCN)

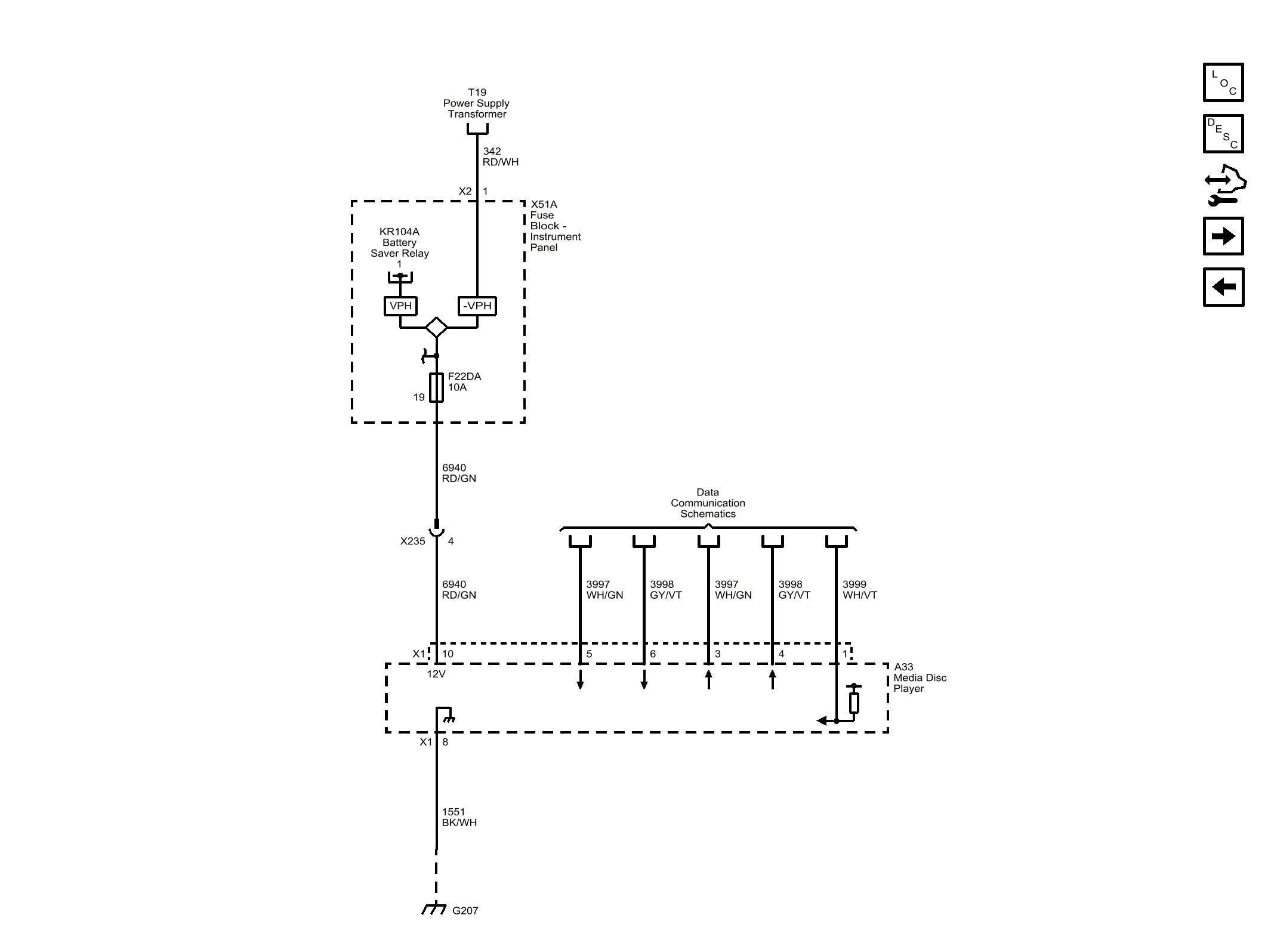

Fig 1: Media Disc Player Power, Ground and Serial Data (WCN)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
