Windshield Washer Solvent Container Level Sensor Grommet Replacement

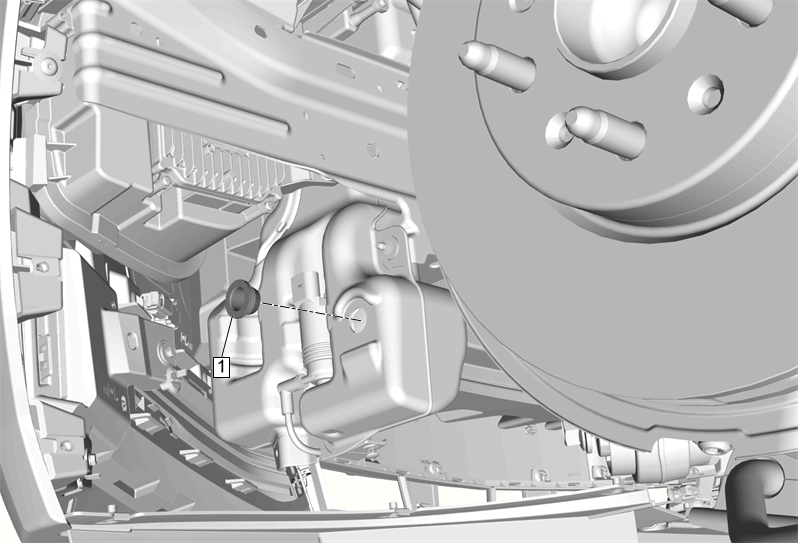

Fig 1: Windshield Washer Solvent Container Level Sensor Grommet

GM4246479

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure
Windshield Washer Solvent Container Level Sensor Replacement

1

Windshield Washer Solvent Container Level Sensor Grommet

Procedure

Remove and DISCARD the windshield washer solvent container level sensor grommet.
Lubricate the exterior of the New grommet with windshield washer solvent to assist with the installation of the grommet into the windshield washer solvent container.
Ensure the grommet is properly seated in the windshield washer solvent container.
