Windshield Washer Solvent Container Level Sensor Replacement

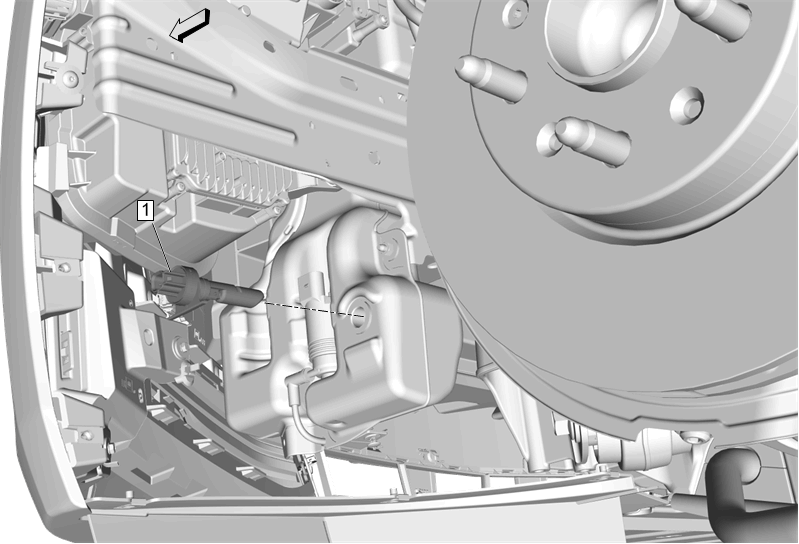

Fig 1: Windshield Washer Solvent Container Level Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Wheelhouse Liner Replacement
1	Windshield Washer Solvent Container Level Sensor Procedure Disconnect the electrical connector. Place a clean suitable drain pan under the windshield washer solvent container to secure the windshield washer solvent when the level sensor and seal are removed. Using two flat-bladed tools, place the ends under each side of the windshield washer solvent level sensor, twist and pry outward in opposite directions to disengage the level sensor from the washer solvent container and grommet. Remove and Discard the windshield washer solvent container grommet and replace with a New grommet.

Callout

Component Name

Windshield Washer Solvent Container Level Sensor

Procedure

Disconnect the electrical connector.
Place a clean suitable drain pan under the windshield washer solvent container to secure the windshield washer solvent when the level sensor and seal are removed.
Using two flat-bladed tools, place the ends under each side of the windshield washer solvent level sensor, twist and pry outward in opposite directions to disengage the level sensor from the washer solvent container and grommet.
Remove and Discard the windshield washer solvent container grommet and replace with a New grommet.
