Installation Procedure

Drive Motor Generator Control Module Coolant Pump Hose (2) @ Generator Control Module Coolant Pump» Install

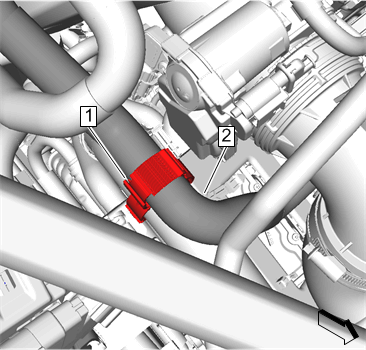

Fig 1: Drive Motor Generator Control Module Coolant Pump Hose Clamp
Courtesy of GENERAL MOTORS COMPANY
Drive Motor Generator Control Module Coolant Pump Hose Clamp (1)» Engage - Hose Clamp Replacement Guidelines - Spring Type
Drive Motor Generator Control Module Coolant Pump Hose Bolt (1) @ Drive Motor Generator Control Module Coolant Pump Hose (2)» Install and tighten

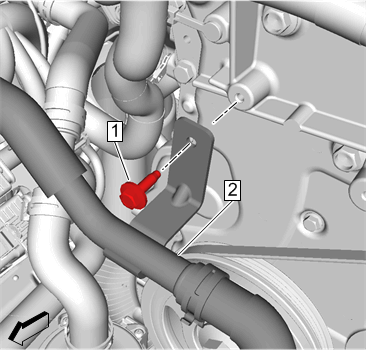

Fig 2: Drive Motor Generator Control Module Coolant Pump Hose
Courtesy of GENERAL MOTORS COMPANY

CAUTION: Refer to Fastener Caution .

9 N.m (80 lb in)
Radiator Inlet Hose Clip (1) @ Drive Motor Generator Control Module Coolant Pump Hose (2)» Install

Fig 3: Radiator Inlet Hose Clip
Courtesy of GENERAL MOTORS COMPANY
Drive Motor Generator Control Module Coolant Pump Hose @ Generator Control Module Coolant/Air Separator» Install

Fig 4: Retainer
Courtesy of GENERAL MOTORS COMPANY
Retainer (1) @ Drive Motor Generator Control Module Coolant Pump Hose (2)» Engage
Air Cleaner Assembly (2)» Install - Air Cleaner Assembly Replacement

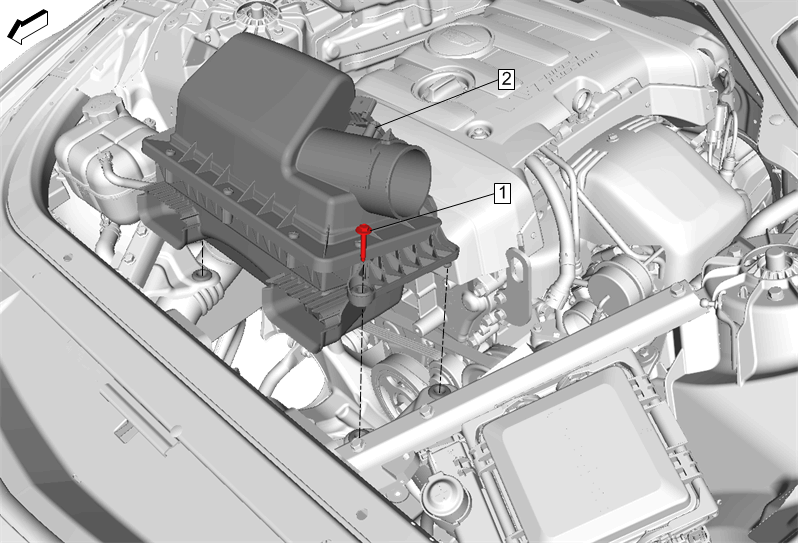

Fig 5: Air Cleaner Assembly
Courtesy of GENERAL MOTORS COMPANY
Fill the power electronics and auxiliary radiator cooling system. Refer to Power Electronics and Auxiliary Radiator Drain and Fill (LTG HP9)
Enable the high voltage system. Refer to High Voltage Enabling
Start the engine and check for coolant leaks.
