Removal Procedure

Disable the high voltage system. Refer to High Voltage Disabling
Drain the power electronics and auxiliary radiator cooling system. Refer to Power Electronics and Auxiliary Radiator Drain and Fill (LTG HP9)
Front Bumper Fascia Lower Stiffener (3)» Remove - Front Bumper Fascia Lower Stiffener Replacement

Fig 1: Front Bumper Fascia Lower Stiffener
Courtesy of GENERAL MOTORS COMPANY

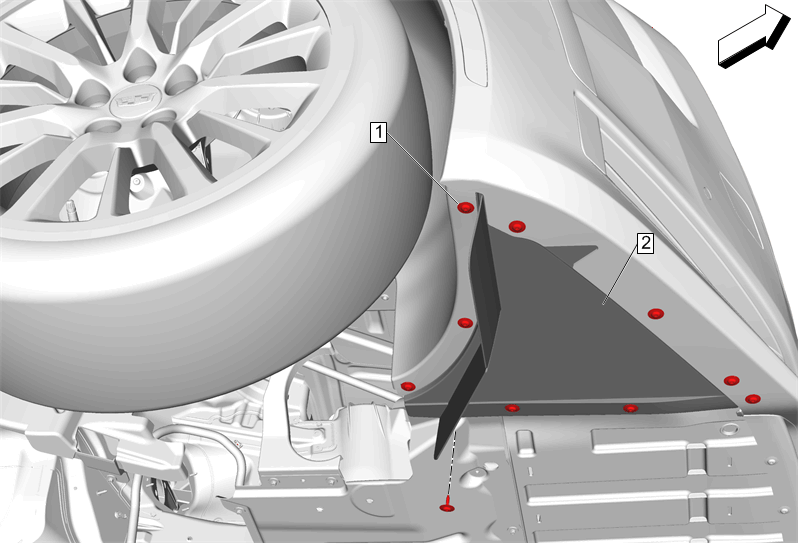

Front Tire Front Air Deflector - Left Side (2)» Remove - Front Tire Front Air Deflector Replacement

Fig 2: Front Tire Front Air Deflector
Courtesy of GENERAL MOTORS COMPANY

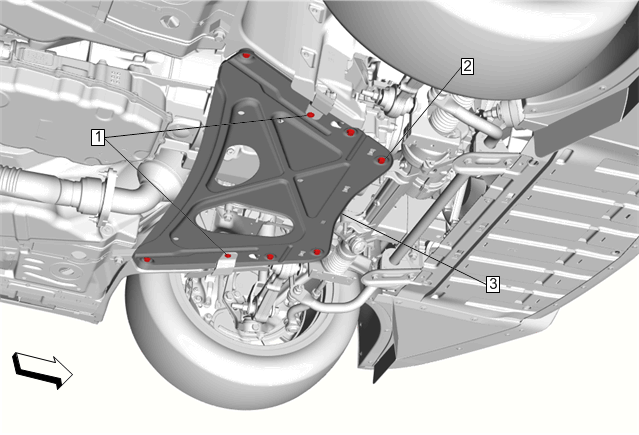

Drivetrain and Front Suspension Cradle Plate (3)» Remove - Drivetrain and Front Suspension Cradle Plate Replacement

Fig 3: Drivetrain and Front Suspension Cradle Plate
Courtesy of GENERAL MOTORS COMPANY

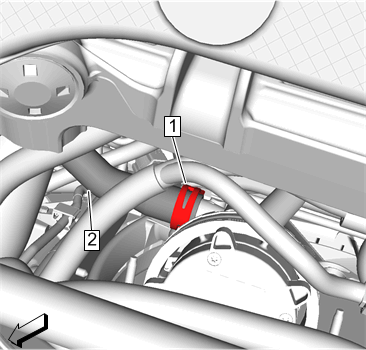

Drive Motor Generator Control Module Radiator Inlet Hose Clamp (1)» Disengage - Hose Clamp Replacement Guidelines - Spring Type

Fig 4: Drive Motor Generator Control Module Radiator Inlet Hose Clamp
Courtesy of GENERAL MOTORS COMPANY
Drive Motor Generator Control Module Radiator Inlet Hose (2) @ Auxiliary Radiator» Remove

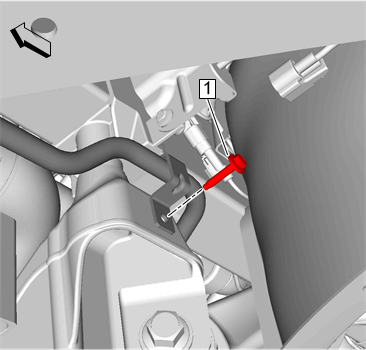

Drive Motor Generator Control Module Radiator Inlet Hose Bolt (1) @ Drivetrain and Front Suspension Cradle» Remove

Fig 5: Drive Motor Generator Control Module Radiator Inlet Hose Bolt
Courtesy of GENERAL MOTORS COMPANY

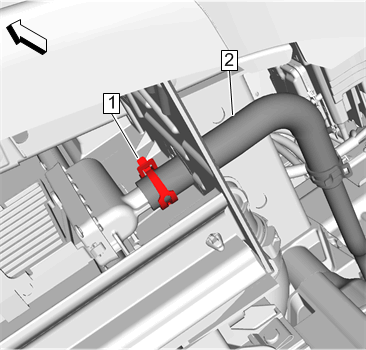

Drive Motor Generator Control Module Radiator Inlet Hose Clamp (1)» Disengage - Hose Clamp Replacement Guidelines - Spring Type

Fig 6: Drive Motor Generator Control Module Radiator Inlet Hose
Courtesy of GENERAL MOTORS COMPANY
Drive Motor Generator Control Module Radiator Inlet Hose (2) @ Generator Control Module Coolant Pump» Remove
Drive Motor Generator Control Module Radiator Inlet Hose (2)» Remove
