Installation Procedure

Generator Control Module Coolant Radiator Bracket (1)» Install

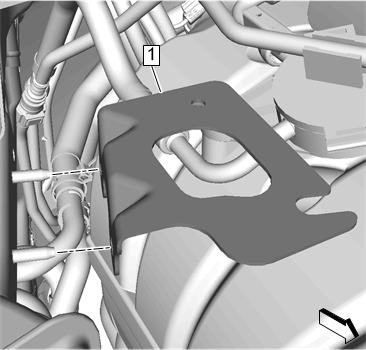

Fig 1: Generator Control Module Coolant Radiator Bracket
Courtesy of GENERAL MOTORS COMPANY

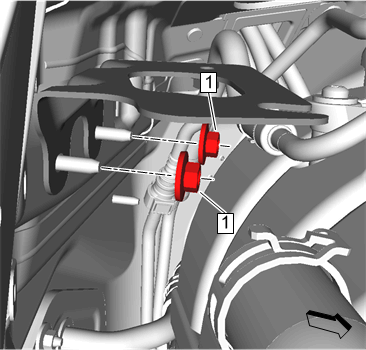

Generator Control Module Coolant Radiator Bracket Nut (1) @ Generator Control Module Coolant Radiator Bracket» Install and tighten [2x] 9 N.m (80 lb in)

Fig 2: Generator Control Module Coolant Radiator Bracket Nut
Courtesy of GENERAL MOTORS COMPANY

CAUTION: Refer to Fastener Caution .
Generator Control Module Coolant/Air Separator (1)» Install - Generator Control Module Coolant/Air Separator Replacement

Fig 3: Generator Control Module Coolant/Air Separator
Courtesy of GENERAL MOTORS COMPANY
Fill the power electronics and auxiliary radiator cooling system. Refer to Power Electronics and Auxiliary Radiator Drain and Fill (LTG HP9)
Enable the high voltage system. Refer to High Voltage Enabling
Start the engine and check for coolant leaks.
