Removal Procedure

Disable the high voltage system. Refer to High Voltage Disabling
Drain the power electronics and auxiliary radiator cooling system. Refer to Power Electronics and Auxiliary Radiator Drain and Fill (LTG HP9)
Engine Lower Front Splash Shield (2)» Remove - Engine Lower Front Splash Shield Replacement (LTG)

Fig 1: Engine Lower Front Splash Shield (LTG)
Courtesy of GENERAL MOTORS COMPANY

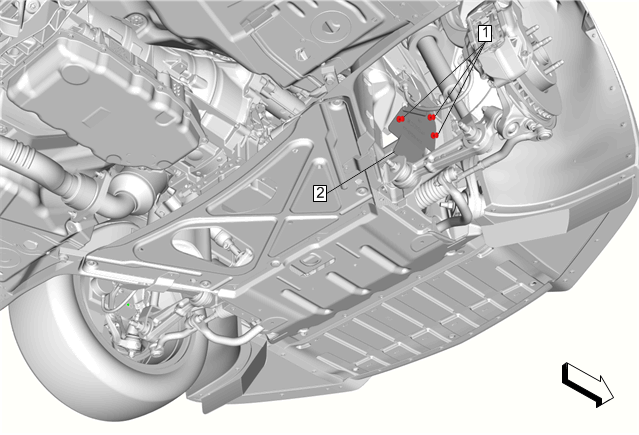

Drivetrain and Front Suspension Cradle Plate (3)» Remove - Drivetrain and Front Suspension Cradle Plate Replacement

Fig 2: Drivetrain and Front Suspension Cradle Plate
Courtesy of GENERAL MOTORS COMPANY

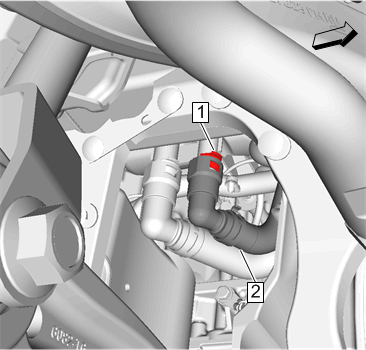

Generator Control Module Coolant Radiator Hose Retainer (1) @ Generator Control Module Coolant Radiator Hose» Disengage

Fig 3: Generator Control Module Coolant Radiator Hose
Courtesy of GENERAL MOTORS COMPANY
Generator Control Module Coolant Radiator Hose (2) @ Heater Inlet Pipe Connector» Remove
Generator Control Module Coolant Radiator Hose Clamp (1) @ Generator Control Module Coolant Radiator Hose» Disengage - Hose Clamp Replacement Guidelines - Spring Type

Fig 4: Generator Control Module Coolant Radiator Hose Clamp
Courtesy of GENERAL MOTORS COMPANY
Generator Control Module Coolant Radiator Hose (2) @ Accessory DC Power Control Module» Remove
Generator Control Module Coolant Radiator Hose (2)» Remove
