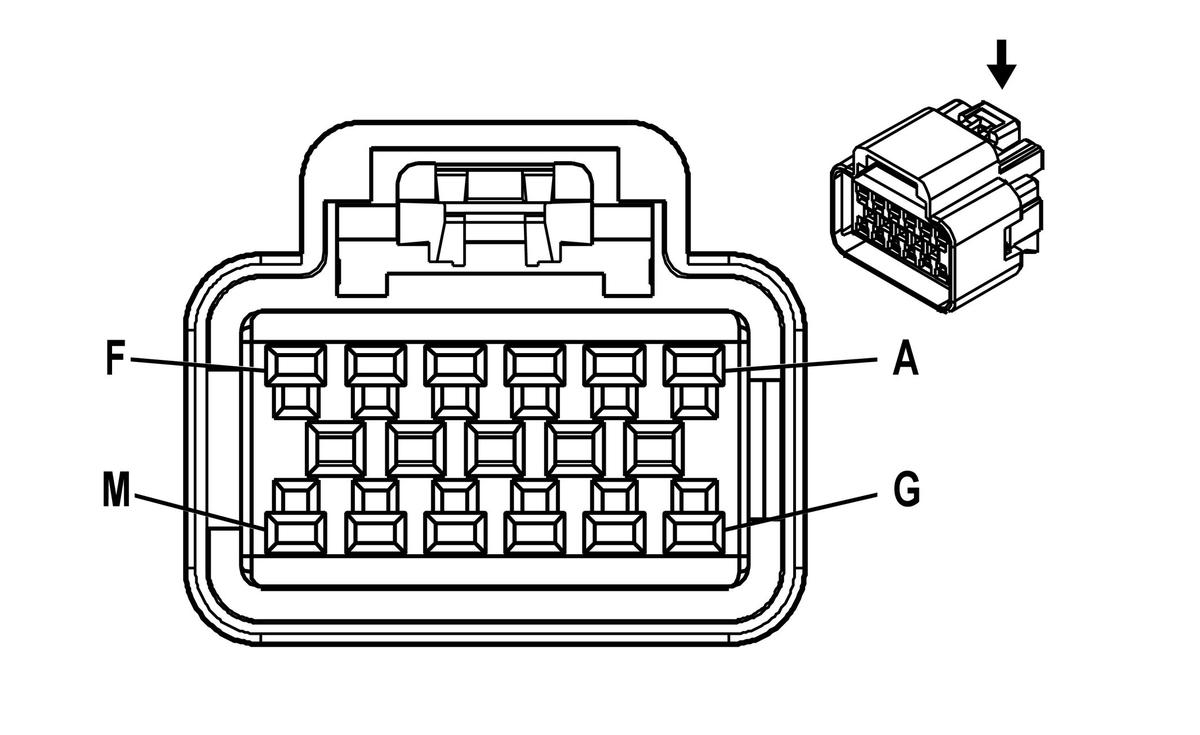

B15 Transmission Internal Mode Switch (HP9)
|
|
Connector Part Information
- Harness Type: Transmission
- OEM Connector: 15332161
- Service Connector: Service by Harness - See Part Catalog
- Description: 12-Way F 150 GT Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
Not Available |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
0.5 |
TN |
3927 |
IMS Mode Switch Low Reference |
I |
- |
| B |
0.5 |
OG |
3497 |
Transmission IMS Mode Switch D2 bit Signal |
I |
- |
| C |
0.5 |
YE |
3496 |
Transmission IMS Mode Switch D1 bit Signal |
I |
- |
| D |
0.5 |
GN |
3495 |
Transmission IMS Mode Switch R2 bit Signal |
I |
- |
| E |
0.5 |
BN |
3494 |
Transmission IMS Mode Switch R1 bit Signal |
I |
- |
| F |
0.5 |
GY |
3493 |
Transmission IMS Mode Switch S bit Signal |
I |
- |
| G |
0.5 |
BK |
3927 |
IMS Mode Switch Low Reference |
I |
- |
| H |
0.5 |
WH |
4168 |
PRNDL P Signal |
I |
- |
| J |
0.5 |
BU |
5983 |
PRNDL C Signal |
I |
- |
| K |
0.5 |
GN |
5982 |
PRNDL B Signal |
I |
- |
| L |
0.5 |
VT |
5981 |
PRNDL A Signal |
I |
- |
| M |
- |
- |
- |
Not Occupied |
- |
- |
