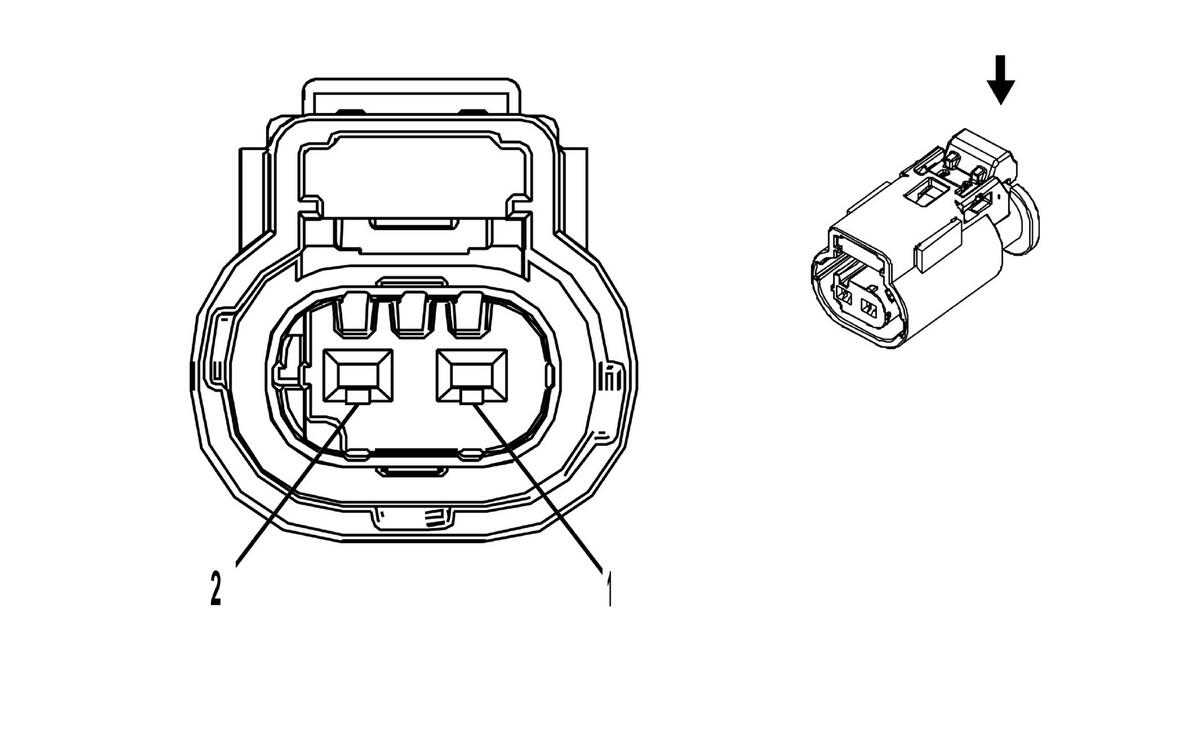

B82F Pedestrian Impact Detection Sensor - Upper Beam Front X2 (B3T)
|
|
Connector Part Information
- Harness Type: Front Fascia
- OEM Connector: 13852490
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way F 1.2 Multilock Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-16 (LT GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
OG/VT |
4034 |
Pedestrian Protection Impact Sensing Module Signal |
I |
- |
| 2 |
0.5 |
BN/WH |
4035 |
Pedestrian Protection Impact Sensing Module Low Reference |
I |
- |
