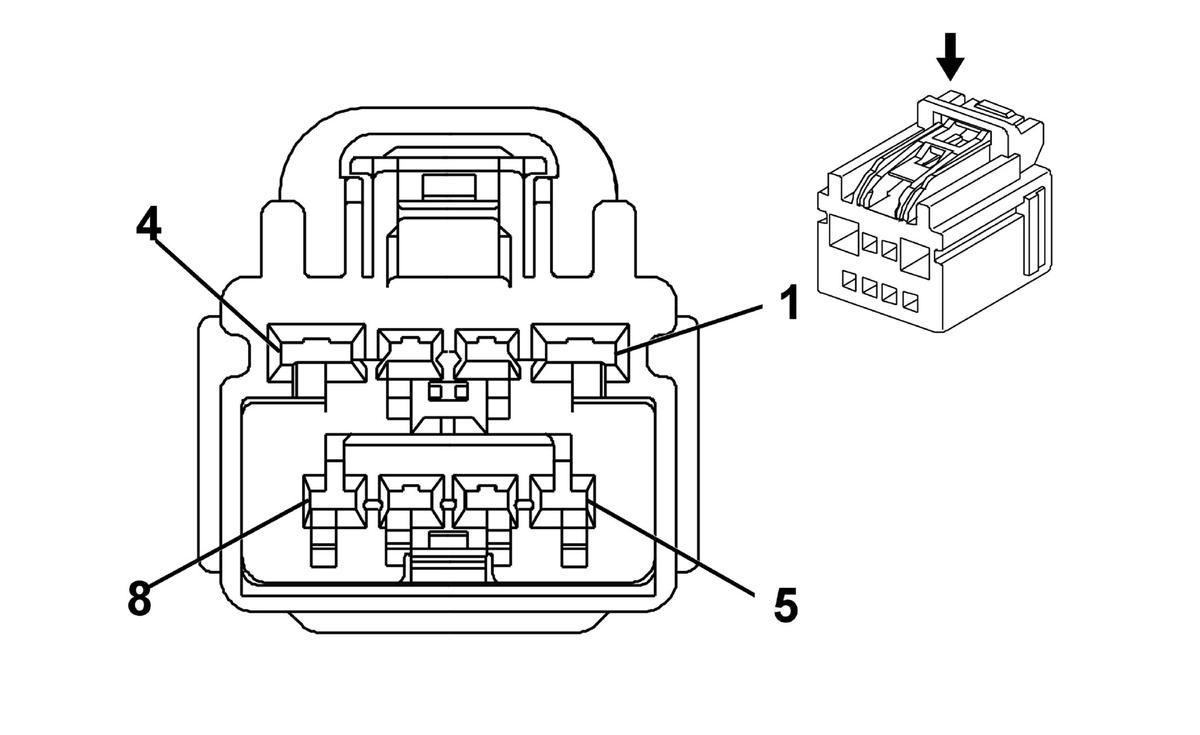

M17 Liftgate Motor Assembly (TC2)
|
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 10847007
- Service Connector: 19153181
- Description: 8-Way F YESC Kaizen Series (L-GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-2A (GY) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
J-35616-4A (PU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
2.5 |
BN/WH |
5799 |
Lift Gate Open/Close Motor Close Control |
II |
- |
| 2 |
0.35 |
BN/RD |
5803 |
Lift Gate Position Sensor 5V Reference |
I |
- |
| 3 |
0.35 |
BK/GN |
5804 |
Lift Gate Position Sensor Low Reference |
I |
- |
| 4 |
2.5 |
WH |
5798 |
Lift Gate Open/Close Motor Open Control |
II |
- |
| 5 - 6 |
- |
- |
- |
Not Occupied |
- |
- |
| 7 |
0.35 |
BU/WH |
5805 |
Lift Gate Position Sensor Signal 1 |
I |
- |
| 8 |
0.35 |
BN/YE |
5806 |
Lift Gate Position Sensor Signal 2 |
I |
- |
