T1 Accessory DC/AC Power Inverter Module X1 (KI6/KI7)
|
|

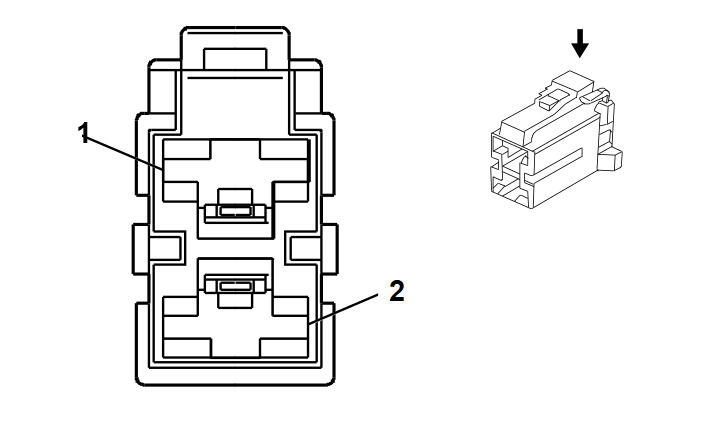

Connector Part Information
- Harness Type: Body
- OEM Connector: 10721337
- Service Connector: 88953301
- Description: 2-Way F 56 Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-22 (RD) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
6 |
BN/BK |
4629 |
DC/AC Inverter Control |
I |
- |
| 2 |
4 |
BK |
2450 |
Ground |
I |
- |
