Collision Alert Indicators and Safety Seat (UEU/UHX)

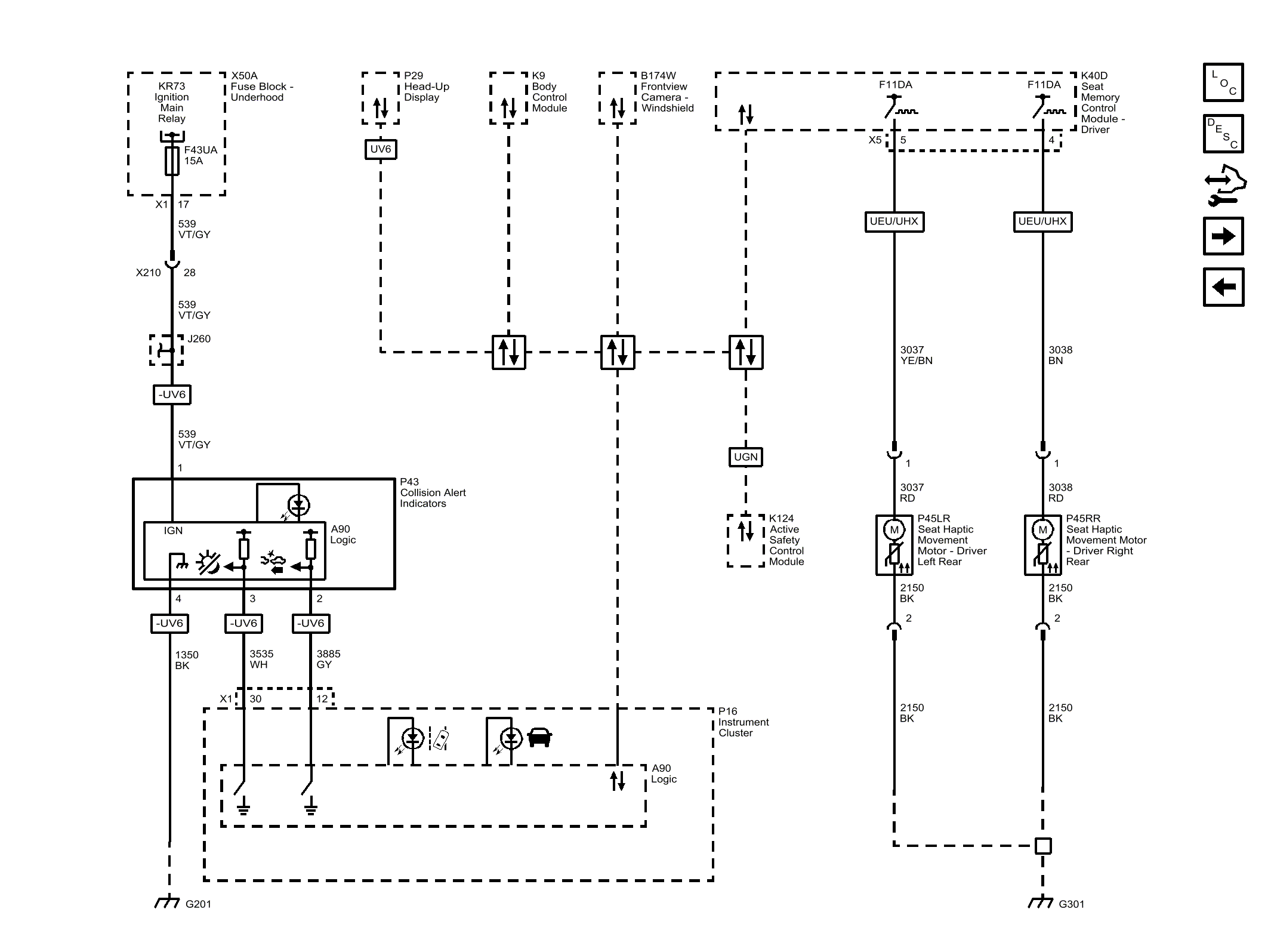

Fig 1: Collision Alert Indicators and Safety Seat (UEU/UHX)
GM4489900Courtesy of GENERAL MOTORS COMPANY
