Front Floor Speaker Replacement

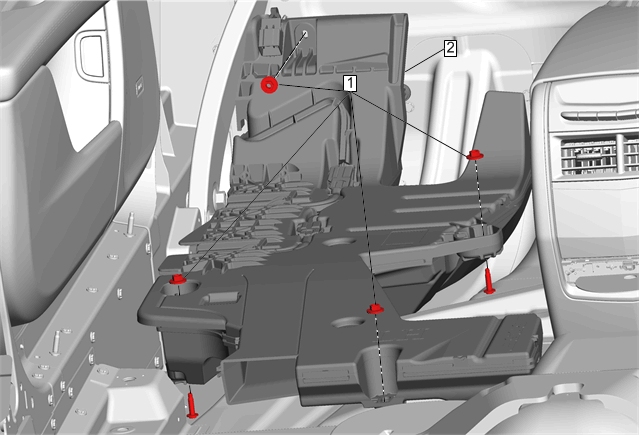

Fig 1: Front Floor Speaker

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Floor Panel Carpet Replacement - Left Side or Front Floor Panel Carpet Replacement - Right Side
1	Front Floor Speaker Nut [4x] CAUTION: Refer to Fastener Caution . Tighten 6 N.m (53 lb in)
2	Front Floor Speaker Procedure Disconnect the electrical connector.
