Mobile Telephone Microphone Replacement

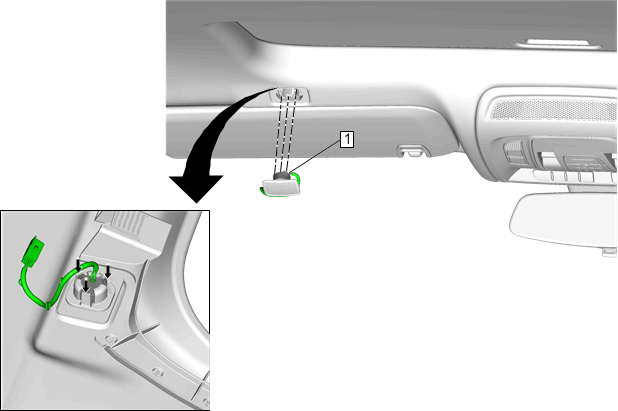

Fig 1: Mobile Telephone Microphone

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure It is only necessary to lower the headliner. Only do those steps in headliner replacement that will lower the headliner enough to gain access to the part. Refer to Headlining Trim Panel Replacement (Without C3U) and/or Headlining Trim Panel Replacement (With C3U)
1	Mobile Telephone Microphone Procedure Disconnect the electrical connector. Unlock the [3x] tabs to release the microphone from the trim plate. Transfer components as necessary.

Callout

Component Name

Preliminary Procedure
It is only necessary to lower the headliner. Only do those steps in headliner replacement that will lower the headliner enough to gain access to the part. Refer to Headlining Trim Panel Replacement (Without C3U) and/or Headlining Trim Panel Replacement (With C3U)

Mobile Telephone Microphone

Procedure
