Multimedia Receptacle Replacement (Except Platinum)

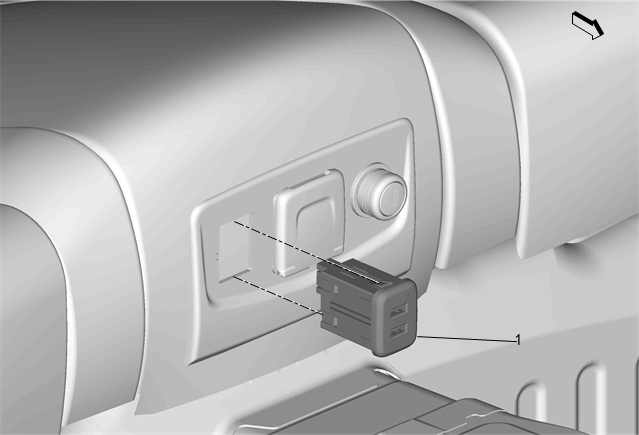

Fig 1: Multimedia Receptacle (Except Platinum)
GM4255251Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Multimedia Receptacle

Procedure

  1. Use a flat bladed plastic tool to remove.
  2. Unlock the retaining tabs.
  3. Disconnect the electrical connector.
