Multimedia Receptacle Replacement (Platinum)

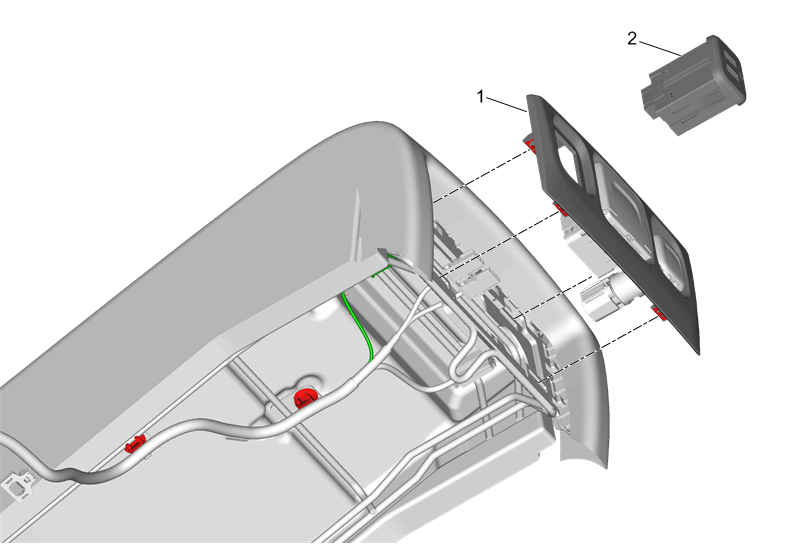

Fig 1: Multimedia Receptacle (Platinum)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Rear Seat Cushion Removal and Installation (Platinum 20%)Rear Seat Cushion Removal and Installation (Platinum 40%)
1	USB Receptacle Bezel Procedure Use a flat bladed plastic tool to remove. Unlock the retaining tabs. Disconnect the electrical connector.
2	Multimedia Receptacle Procedure Use a flat bladed plastic tool to remove. Unlock the retaining tabs.

Callout

Component Name

USB Receptacle Bezel

Procedure

Multimedia Receptacle

Procedure
