Radio Front Floor Console Speaker Replacement

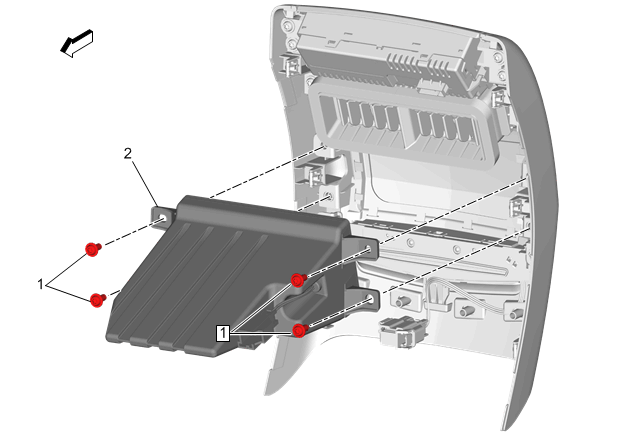

Fig 1: Radio Front Floor Console Speaker

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Floor Console Rear Trim Panel Replacement
1	Front Floor Console Bolt [4x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Radio Front Floor Console Speaker
