Radio Front Side Door Speaker Replacement

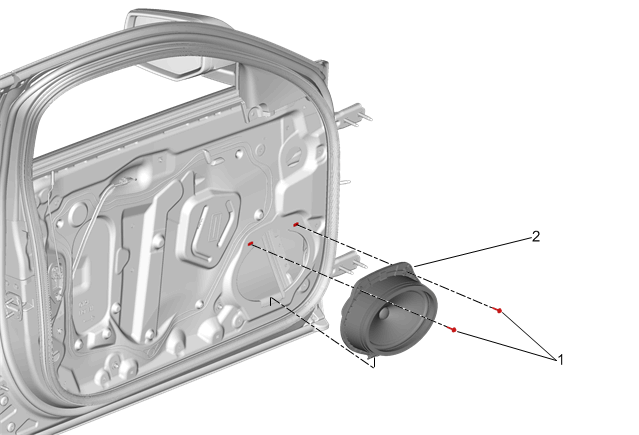

Fig 1: Radio Front Side Door Speaker

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Side Door Trim Replacement
1	Radio Front Side Door Speaker Fastener [2x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Radio Front Side Door Speaker Procedure Disconnect the electrical connector.
