Radio Speaker Amplifier Replacement

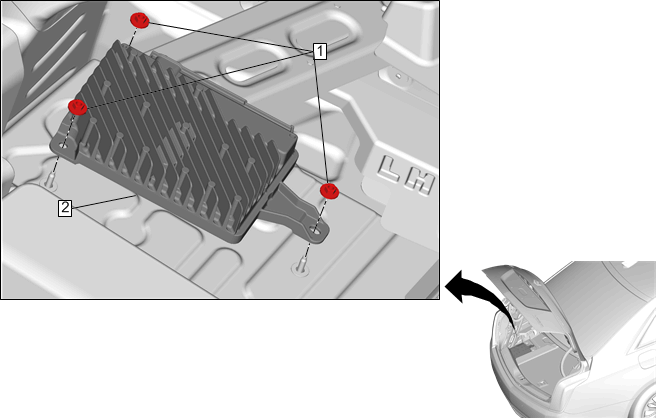

Fig 1: Radio Speaker Amplifier

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Rear Compartment Side Trim Replacement - Left Side (Without HP9)Rear Compartment Side Trim Replacement - Left Side (With HP9)
1	Radio Speaker Amplifier Nut [3x] CAUTION: Refer to Fastener Caution . Tighten 6 N.m (53 lb in)
2	Radio Speaker Amplifier Procedure Disconnect the electrical connectors. Control Module References for programming and set up procedures, if required.

Callout

Component Name

Radio Speaker Amplifier Nut [3x]

CAUTION: Refer to Fastener Caution .

Tighten
6 N.m (53 lb in)

Radio Speaker Amplifier

Procedure
