Video Display Bezel Replacement

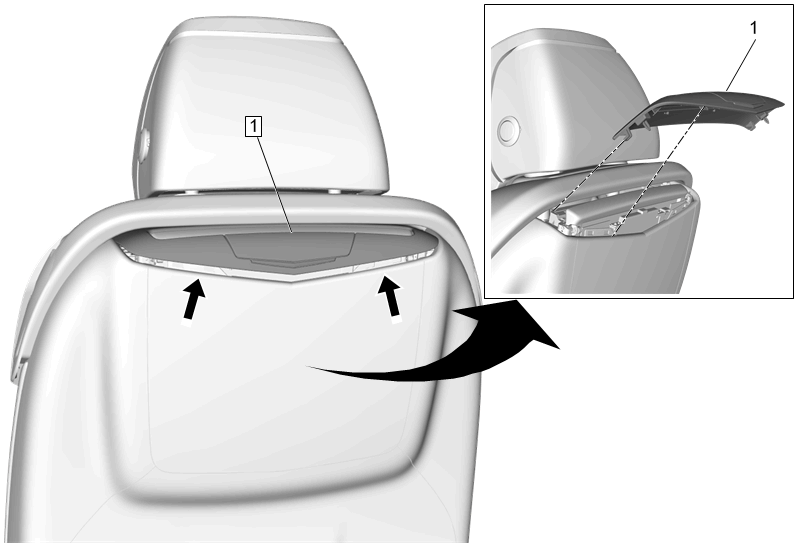

Fig 1: Video Display Bezel
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Video Display Bezel
Procedure
Using a flat-bladed plastic trim tool, start at the bottom center of the bezel and slide the tool over to locate, and release the two retainers.
Lift the bezel up and disengage it from the seat frame.
