Video Display Replacement

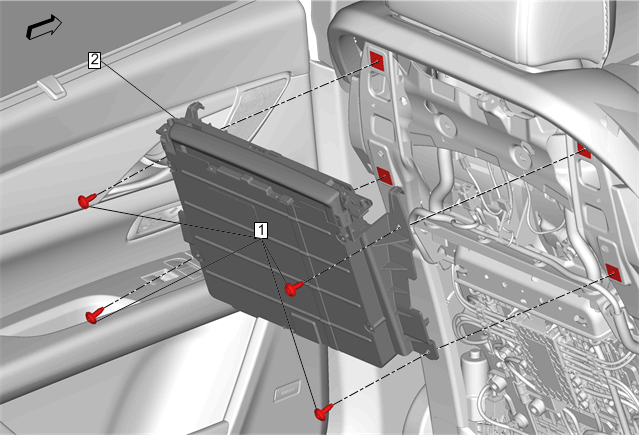

Fig 1: Video Display

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Seat Back Cushion Finish Panel Replacement (without UWG)Front Seat Back Cushion Finish Panel Replacement (with UWG)
1	Video Display Bracket Bolt [4x] CAUTION: Refer to Fastener Caution . Tighten 7 N.m (62 lb in)
2	Video Display
