Windshield Multifunction Sensor Mount Bracket Lower Cover Replacement (without UEU)

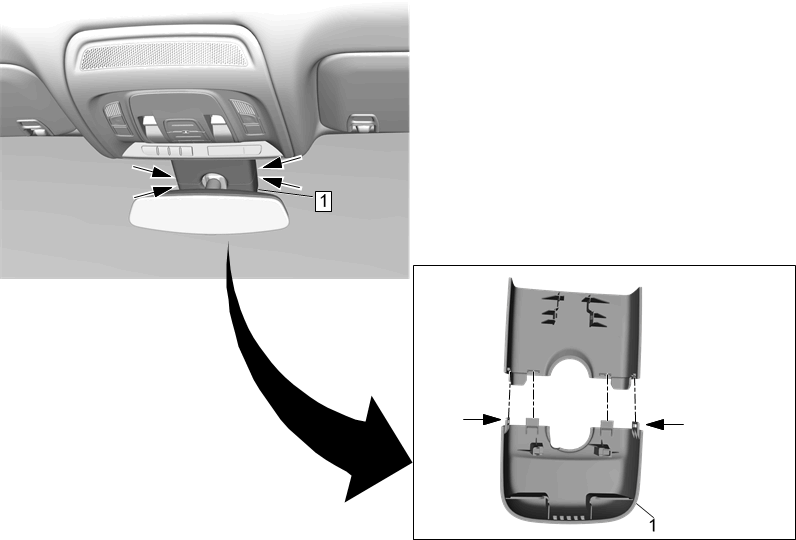

Fig 1: Windshield Multifunction Sensor Mount Bracket Lower Cover (without UEU)

GM4247769

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

1

Windshield Multifunction Sensor Mount Bracket Lower Cover

Procedure

Disengage the cover from the sides of the bracket by lifting on the sides of the cover next to the glass surface.
With the bracket cover loose, unlock the top and bottom covers by flexing the top cover at the outboard locking tab and flex the bottom cover at the inboard tab disengaging the locking tabs on each side to separate the top and bottom halves of the cover.
Remove the bracket lower cover from the bracket cover.
