Windshield Washer Pump Replacement (Windshield)

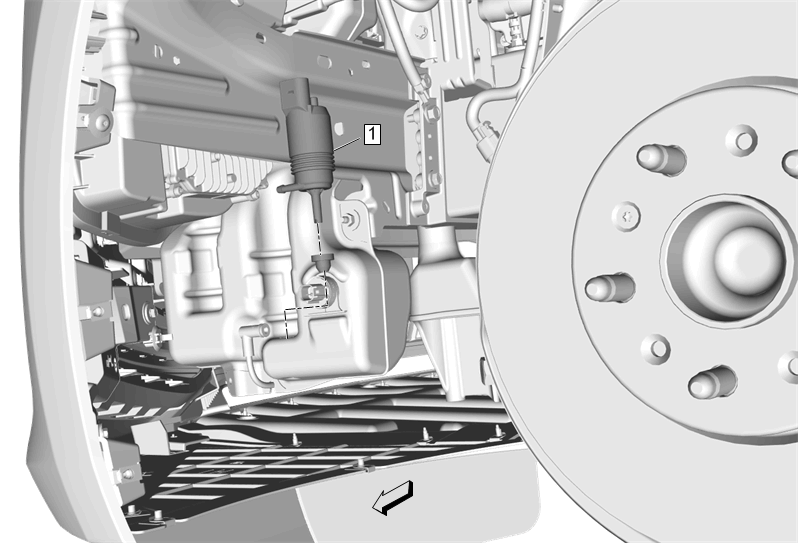

Fig 1: Windshield Washer Pump (Windshield)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Wheelhouse Liner Replacement
1	Windshield Washer Pump Procedure Disconnect the electrical connector. Place a clean suitable drain pan under the windshield washer solvent container to secure the windshield washer solvent when the level sensor and seal are removed. Disconnect the windshield washer pump hose from the windshield washer pump. Using two flat-bladed tools, place the ends under each side of the windshield washer pump, twist and pry outward in opposite directions to disengage the pump from the washer solvent container and grommet. Remove and Discard the windshield washer pump grommet and replace with a New grommet.

Callout

Component Name

Windshield Washer Pump

Procedure

Disconnect the electrical connector.
Place a clean suitable drain pan under the windshield washer solvent container to secure the windshield washer solvent when the level sensor and seal are removed.
Disconnect the windshield washer pump hose from the windshield washer pump.
Using two flat-bladed tools, place the ends under each side of the windshield washer pump, twist and pry outward in opposite directions to disengage the pump from the washer solvent container and grommet.
Remove and Discard the windshield washer pump grommet and replace with a New grommet.
