Windshield Washer Solvent Container Replacement

Preliminary Procedures

1. Front Bumper Fascia Replacement (Without UV3)Front Bumper Fascia Replacement (With UV3)
2. Place a suitable drain pan under the windshield washer pump area to recover the windshield washer solvent when the windshield washer pump hose is disconnected.
3. Disconnect the electrical connectors.
4. Disconnect windshield washer pump hose from the windshield washer pump and windshield washer solvent container.

Procedure

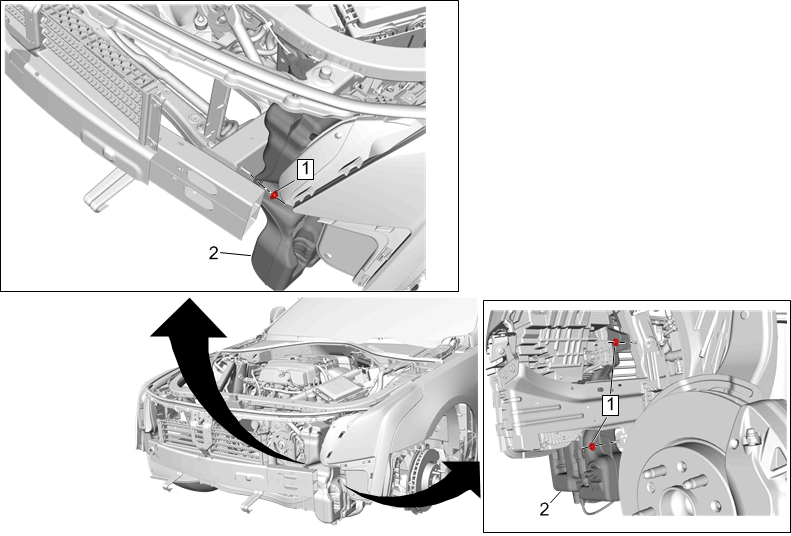

1. Remove the windshield washer solvent container from the vehicle.
2. Drain the windshield washer solvent into a suitable clean container.
3. Transfer components as necessary.
