Rear Closure Hands Free Module Replacement
| Callout | Component Name |
|---|---|
|
WARNING:
Eye protection must be worn when drilling rivets to reduce the chance of personal injury. Preliminary Procedure Underbody Rear Air Rear Deflector Replacement (Without HP9)Underbody Rear Air Rear Deflector Replacement (With HP9) |
|

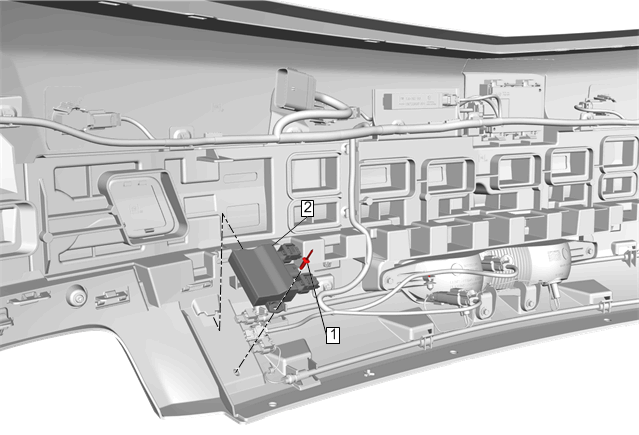

| 1 | Rear Closure Hands Free Module Rivet Procedure Using the appropriate tool, remove the rivet. |
| 2 | Rear Closure Hands Free Module Procedure Disconnect the upper and lower hands free sensors. |
