Front Side Door Window Switch Replacement - Right Side

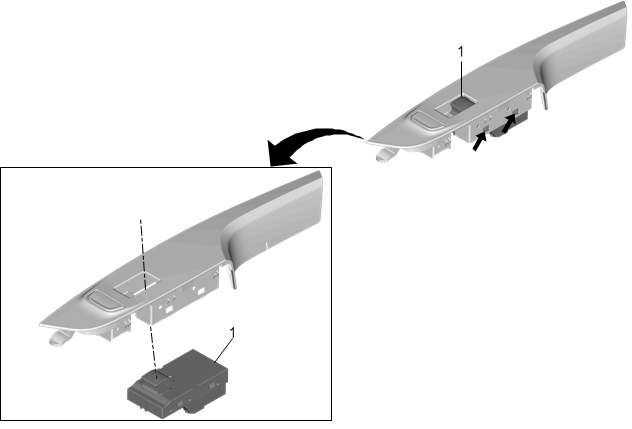

Fig 1: Front Side Door Window Switch - Right Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Side Door Armrest Switch Mount Plate Replacement (Drivers Side)Front Side Door Armrest Switch Mount Plate Replacement (Passenger Side)
1	Front Side Door Window Switch Procedure Release the switch assembly from the switch mount plate by depressing the tabs along each side of the switch. Control Module References for programming and setup information, if required.

Callout

Component Name

Front Side Door Window Switch

Procedure

Release the switch assembly from the switch mount plate by depressing the tabs along each side of the switch.
Control Module References for programming and setup information, if required.
