Driver or Passenger Seat Adjuster Memory Module Replacement

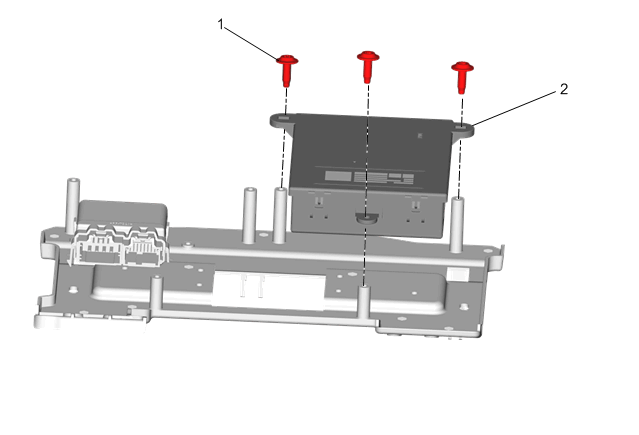

Fig 1: Driver or Passenger Seat Adjuster Memory Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Seat Adjuster Memory Module Bracket Replacement
1	Driver or Passenger Seat Adjuster Memory Module Fastener [3x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Driver or Passenger Seat Adjuster Memory Module Procedure Disconnect all electrical connectors. Control Module References for programming and setup information, if required.

Callout

Component Name

Driver or Passenger Seat Adjuster Memory Module Fastener [3x]

CAUTION: Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Driver or Passenger Seat Adjuster Memory Module

Procedure
