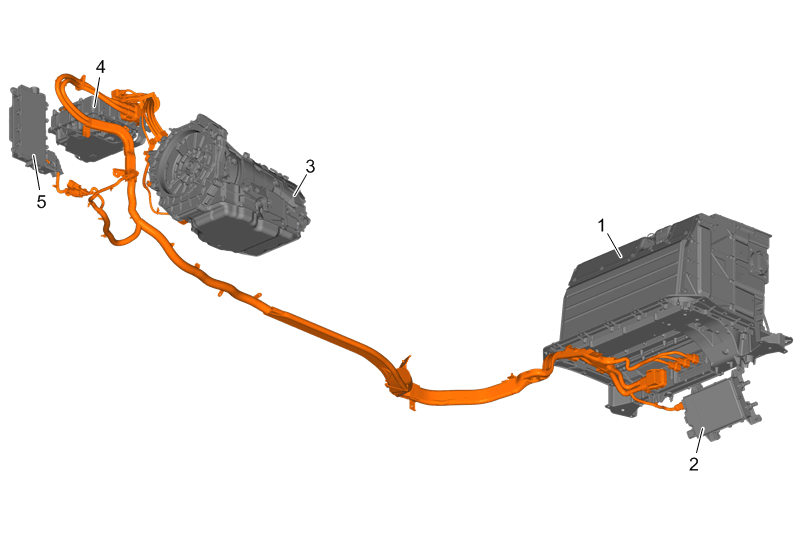

Hybrid Control Electronic Component Views
Courtesy of GENERAL MOTORS COMPANY
| Callout |
Component Name |
| 1 |
High Voltage Battery |
| 2 |
T18 Battery Charger |
| 3 |
T12 Automatic Transmission Assembly |
| 4 |
T6 Power Inverter Module |
| 5 |
K1 14V Power Module |
