Installation Procedure

Generator Cable (4)» Install

Fig 1: Retainer, Protective Cap, Generator Cable And Fastener
Courtesy of GENERAL MOTORS COMPANY
Generator Cable Fastener (2)» Install and tighten 12 N.m (106 lb in)
CAUTION: Refer to Fastener Caution
Protective Cap (3)» Install
Retainer (1)» Engage
Radiator Inlet Hose (2)» Install - Radiator Inlet Hose Replacement (LTG without HP9) , Radiator Inlet Hose Replacement (LGW) , Radiator Inlet Hose Replacement (LGX) and/or Radiator Inlet Hose Replacement (LTG with HP9)

Fig 2: Radiator Inlet Hose
Courtesy of GENERAL MOTORS COMPANY
Retainer (1)» Engage [2x]

Fig 3: Retainers
Courtesy of GENERAL MOTORS COMPANY
Retainer (1)» Engage

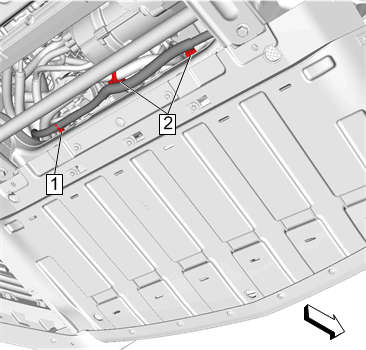

Fig 4: Retainer And Clips
Courtesy of GENERAL MOTORS COMPANY
Retainer Clip (2)» Engage [2x]
Underbody Front Air Deflector (4)» Install - Underbody Front Air Deflector Replacement

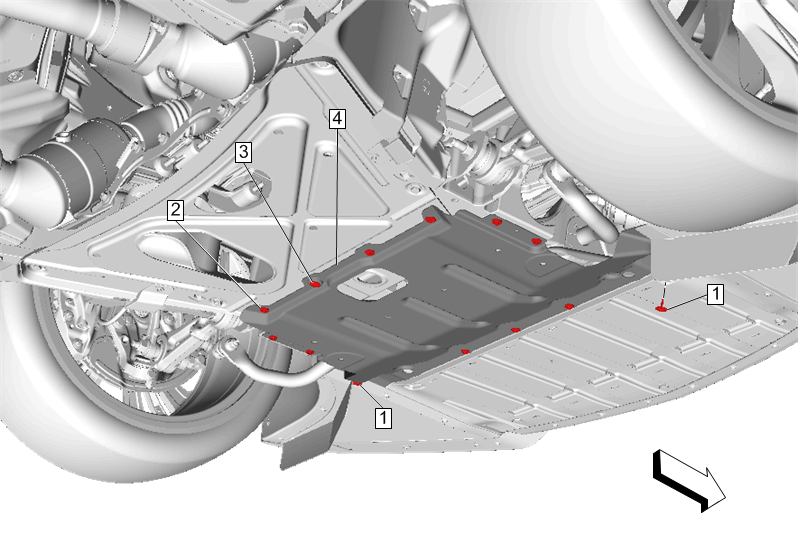

Fig 5: Underbody Front Air Deflector
Courtesy of GENERAL MOTORS COMPANY
Retainer (1)» Engage [2x]

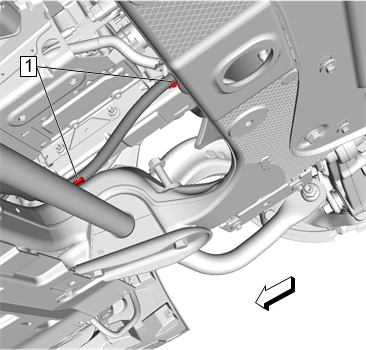

Fig 6: Retainers
Courtesy of GENERAL MOTORS COMPANY
Wiring Harness Retainer (1)» Engage [2x]

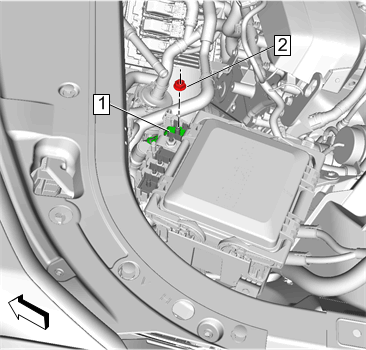

Fig 7: Wiring Harness Retainer
Courtesy of GENERAL MOTORS COMPANY
Generator Cable (1)» Install

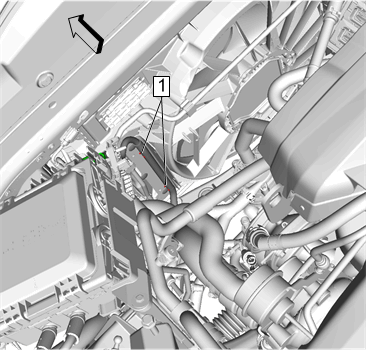

Fig 8: Generator Cable And Fastener
Courtesy of GENERAL MOTORS COMPANY
Generator Cable Fastener (2)» Install and tighten 12 N.m (106 lb in)
Power Distributor Fuse Block Cover (1)» Install

Fig 9: Power Distributor Fuse Block Cover
Courtesy of GENERAL MOTORS COMPANY
Air Cleaner Assembly (1)» Install - Air Cleaner Assembly Replacement

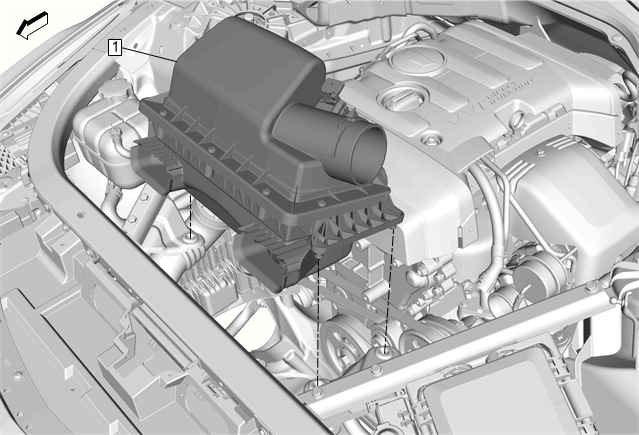

Fig 10: Air Cleaner Assembly
Courtesy of GENERAL MOTORS COMPANY
Enable the high voltage system. Refer to High Voltage Enabling
