Camshaft Position Sensor Replacement - Intake

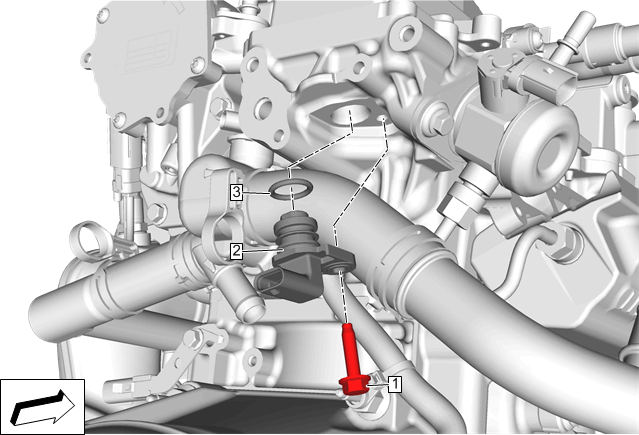

| Callout | Component Name |
|---|---|
| Preliminary Procedure Fuel Pump Cover Replacement |
|
| 1 | Camshaft Position Sensor Fastener
CAUTION:
Refer to Fastener Caution
. Tighten 10 N.m (89 lb in) |
| 2 | Camshaft Position Sensor Procedure Disconnect the electrical wiring harness connector from the camshaft position sensor. |
| 3 | Camshaft Position Sensor Seal Ring Procedure Install a NEW camshaft position sensor seal ring. |
