Fuel Tank Pressure Sensor Replacement

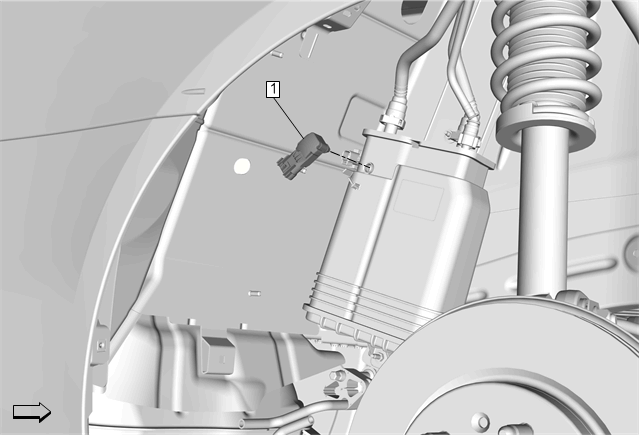

Fig 1: Fuel Tank Pressure Sensor
GM4252922Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING: Refer to Gasoline/Gasoline Vapors Warning .
WARNING: Refer to Safety Glasses Warning .
Preliminary Procedure Rear Wheelhouse Liner Replacement (LTG)
1 Fuel Tank Pressure Sensor
Procedure
Disconnect the electrical connector.
